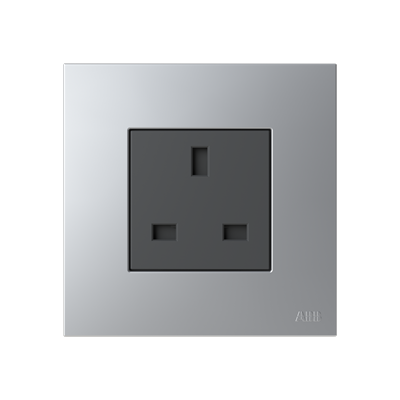

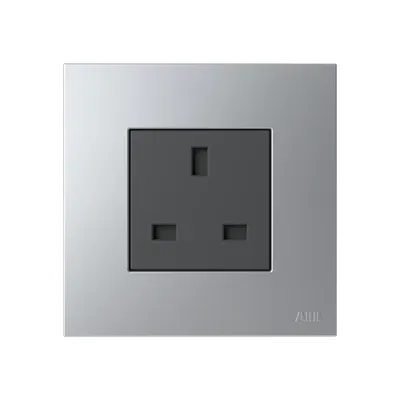

2CLA223709B1301
Part Number: 2CLA223709B1301
Product Information
Extended Description
2CLA223709B1301 ABB: Rated voltage: 250Vac
Rated current: 13A
Includes frame and metal support
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
13 A
Design Range
Zenit BS
Surface Finishing
Decor, Matt
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Silver
Product Net Width
86 mm
Product Net Height
86 mm
Product Net Depth / Length
42 mm
Product Net Weight
0.187 kg
RoHS Information
2CLA223709B1301_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
