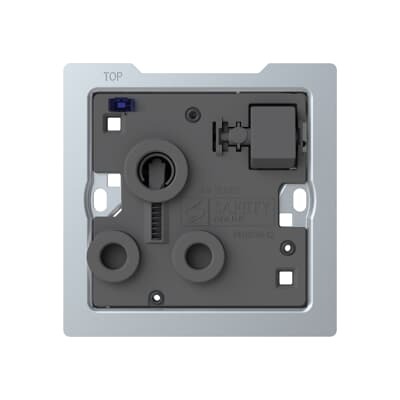

2CLA223770B1001
Part Number: 2CLA223770B1001
Product Information
Extended Description
2CLA223770B1001 ABB: Rated voltage: 250Vac
Rated current: 15A
Double pole switch
LED indicator
Includes child safety shutter
Combines with faceplate: AMD22377.0
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Connection Type
Screw
Socket Outlet Type
Single
Illumination
Illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
15 A
Design Range
Zenit BS
Surface Finishing
Untreated, Glossy
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Anthracite Polished
Product Net Width
86 mm
Product Net Height
86 mm
Product Net Depth / Length
42 mm
Product Net Weight
0.2 kg
RoHS Information
2CLA223770B1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
