2CLA223799B1801
Part Number: 2CLA223799B1801
Product Information
Extended Description
2CLA223799B1801 ABB: Rated voltage: 250Vac
Rated current: 13A
Double pole switch
USB-C 18 W. with Advanced Charging
Includes child safety shutter
Includes frame and metal support with twin earth
Instructions and Manuals

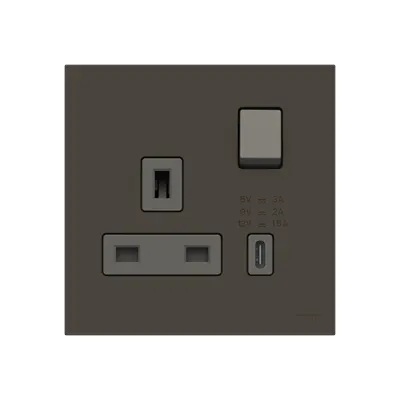

British Standard socket outlet with integrated USB charger
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
British Standard socket outlet with integrated USB charger
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
13 A
Design Range
Zenit BS
Surface Finishing
Decor, Matt
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Anthracite
Product Net Width
86 mm
Product Net Height
86 mm
Product Net Depth / Length
42 mm
Product Net Weight
0.221 kg
RoHS Information
2CLA223799B1801_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
