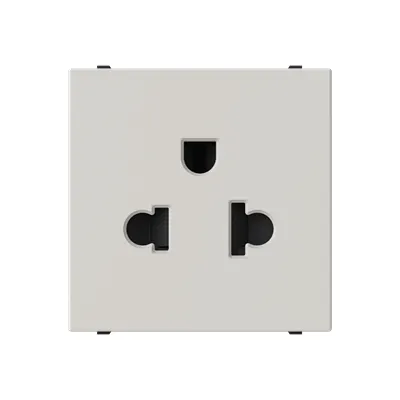

2CLA223801N6201
Part Number: 2CLA223801N6201
Product Information
Extended Description
2CLA223801N6201 ABB: Color: Dune.
Rated voltage: 125 / 250 Vac.
Rated current: 15 / 16 A.
Type B+C: 2P / NEMA 5-15R.
Shuttered for child safety.
Screw terminals.
Size: 2 modules.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Phases
2
Number of Gangs
1
Connection Type
Screw Clamp
Socket Outlet Type
Power Socket Outlets - Italian P11/17 acc. to CEI 23-50
Rated Voltage (Ur)
220 V
Rated Current (In)
15 A
Frequency (f)
50 … 60 Hz
Power Supply Type
External
Design Range
Zenit
Design Range Variant
Zenit S
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
Color
Dune
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
36 g
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
UNSPSC
39121406
