2CLA223900N1901
Part Number: 2CLA223900N1901
Product Information
Extended Description

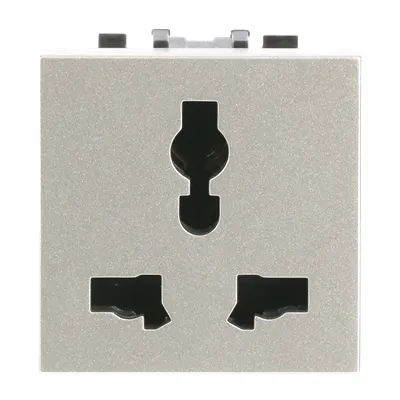

2CLA223900N1901 ABB: Color: Champagne.
Rated voltage: 125 / 250 Vac
Rated current: 13 / 16A
Multiple type: 2P + E
Shuttered for child safety
Screw terminals
Size: 2 modules.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Phases
2
Number of Active Pin Terminals
0
Number of Gangs
1
Connection Type
Screw Clamp
Socket Outlet Type
Multi - Standard Socket
Number of Batteries
0
Rated Voltage (Ur)
220 V
Rated Current (In)
15 A
Frequency (f)
50 … 60 Hz
Power Supply Type
External
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
Color
Champagne
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
51 g
Replaced Product ID (OLD)
2CLA223900N1902
RoHS Information
2CLA223900N1901_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
UNSPSC
39121406
