2CLA224030N1901
Part Number: 2CLA224030N1901
Product Information
Extended Description

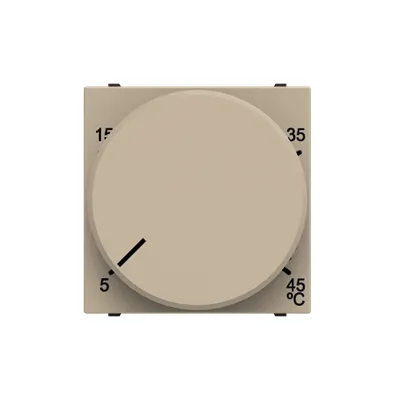

2CLA224030N1901 ABB: Color: Champagne.
Rated voltage: 230 Vac ±10% / 50-60 Hz.
Load power: 2.300 W.
Load type: floor heating resistor.
Control temperature: +5ºC to +45ºC (Set point).
OFF state: at OFF position, the thermostat is off, so that it does not address the temperature measured by the floor temperature probe. The relay output contact is open.
Temperature accuracy: 0,5º C.
Hysteresis: 0,5º C.
Floor temperature sensor: NTC, 10 KΩ at 25º C,
-40º C. to 80º C. Double isolated cable, 4 m. length.
LED light indication: Red and green.
Ambient temperature: -20º C to 45º C.
Size: 2 modules.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Temperature Class Default
II
Data Sheet, Technical Information
9AKK10103A5108
Measuring Range
-20 … 45 °C
Number of Outputs
Heater 1 | Cooler 0
Operating Mode
Turn
Connection Type
Two Wired
Contact Type
Normally Open (NO)
Sensor Type
Resistance sensor
Number of Batteries
0
Power Consumption (@Pcons)
1 W
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Champagne
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
52.1 mm
Product Net Weight
156 g
Replaced Product ID (OLD)
2CLA224030N1902
RoHS Information
2CLA224030N1901_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5bc12abf-7941-49b9-8d36-3801e7caf87c Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC010927 - Room thermostat
