2CLA224440N1601
Part Number: 2CLA224440N1601
Product Information
Extended Description

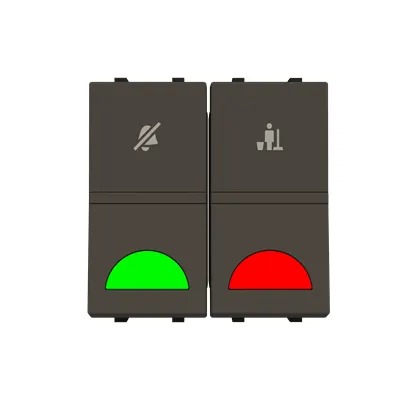

2CLA224440N1601 ABB: Color: Total Anthracite.
Rated current: 16 AX.
Rated power iLED (230/127 Vac): 200/100 W.
Non interlocked gangs.
Gang 1: Make Up Room (MUR) green indicator LED.
Gang 2: Do Not Disturb (DND) red indicator LED.
To be connected to N2280.4 corridor module.
Size: 2 modules.
Instructions and Manuals
DND/MUR signalling set with bell
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Function
Illuminated (on)
Number of Rocker Switches
2
Wiring Configuration
Series switch
Actuator Type
Rocker/button
Connection Type
Push-In
Lamp Type
LED exchangeable
Illumination
Illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
Anthracite
Control Element Color
Anthracite
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
39 g
RoHS Information
2CLA224440N1601_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit screwless terminal CE DoC 9AKK106930A5900-D
ETIM 9
EC001590 - Installation switch
UNSPSC
39122227
