2CLA226030N1901
Part Number: 2CLA226030N1901
Product Information
Extended Description

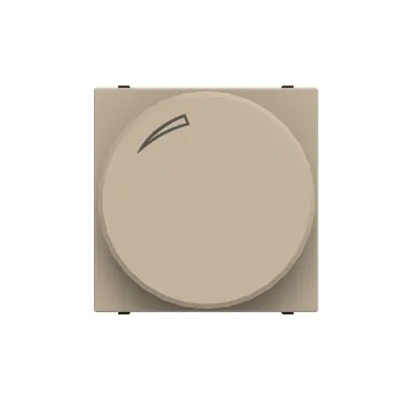

2CLA226030N1901 ABB: Color: Champagne.
Rated voltage: 230 Vac ± 10%
Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA)
Power (min./max load):
- LEDi: 2 / 100 W/VA (max. 10 lamps)
- Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps)
- LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps)
- Incandescent lamps: 10 / 250 W/VA
- Halogen lamps: 10 / 250 W/VA
- LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps)
2 wire connection
Optional: auxiliary on/off with 2-way switch N2X02
Indicator LED lamp included
Back-up fuse: Electronic
Overload protection: Electronic
Ambient temperature: 0°C to +35°C
Size: 2 modules.
Instructions and Manuals
Installation and operating instructions - Rotatory LED dimmer N2260.3, N2260.8, 8660.2, AMD60344
Mounting Type
Flush Mounted
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Actuator Type
Turn button
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
230...230 V
Frequency (f)
50...60 Hz
Load Type
Universal and LED Retrofit
Power Watt
10...250 V·A
Control Supply Voltage
1 ... 10 V
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Champagne
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
53 mm
Product Net Weight
83 g
Built-In Depth (t2)
54 mm
Replaced Product ID (OLD)
2CLA226020N1901 | 2CLA226000N1901 | 2CLA226000N1902 | 2CLA226020N1902
RoHS Information
2CLA226030N1901_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC000025 - Dimmer
