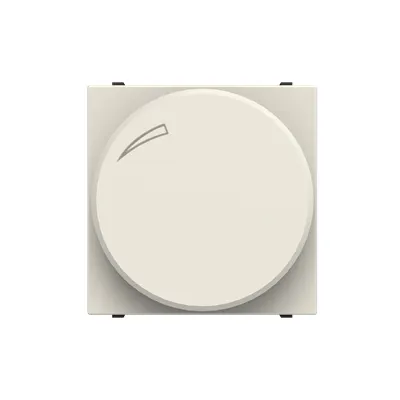

ABB 2CLA226090B1101 Dimmer White - Zenit BS IP20
Part Number: 2CLA226090B1101
Quick Summary
ABB 2CLA226090B1101 Dimmer White - Zenit BS is a compact 1-10V dimmer for lighting control in commercial installations. Engineers often face flicker, compatibility gaps, and retrofit challenges when upgrading legacy ballast systems. This device supports 127-230 VAC 50-60 Hz and drives dimmable electronic ballasts with a 1-10V input, enabling smooth, step-free lighting. Compliance highlights include SCIP registration (Spain ES), WEEE categorization for small equipment, and CMRT reporting for responsible sourcing. The combination of IP20 protection, flush-mount design, and screw terminals simplifies installation and ensures reliable operation in office, retail, and industrial spaces. Leveraging ABB's Zenit BS platform, it delivers energy-efficient control while reducing maintenance costs and retrofit risk.
Product Information
Extended Description
2CLA226090B1101 ABB: Rated voltage: 127 - 230 Vac / 50 - 60 Hz
Dimmable electronic ballast/driver with 1-10V control input.
Max. power:
- 230 Vac: 700 VA
- 127 Vac: 350 VA
Max. 6 ballasts per device
Indicator LED lamp included
Combine with frame window 44x44 – Multi.
Instructions and Manuals
Installation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Installation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Zenit BS
Surface Finishing
Untreated, Glossy
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
White
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
32 mm
Product Net Weight
0.069 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
1ca5931f-4c43-4023-b3ba-145ca3349e79 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Feature: 1-10V dimming input and rated voltage 127-230 VAC 50-60 Hz. Benefit: precise daylighting control and compatibility with a wide range of dimmable ballasts, which reduces energy waste and extends lamp life. Application: ideal for commercial offices and retail environments requiring smooth, reliable dimming. Feature: Max load 700 VA at 230 VAC and 350 VA at 127 VAC with up to 6 ballasts per device. Benefit: supports multi-lamp configurations without overloading, lowering total installation costs. Application: small to mid-size lighting runs where retrofit keeps existing drivers. Feature: IP20 protection and flush-mounted frame with screw connection. Benefit: safe indoor operation and neat aesthetics that ease retrofits and maintenance. Application: corridors, lobbies, and open office spaces. Feature: Frame window 44x44 mm, net dimensions 44x44x32 mm, weight 0.069 kg. Benefit: compact footprint enables rapid replacement in standard 44x44 frames and lightweight handling. Application: panel-mounted control in constrained spaces. Feature: Indicator LED and durable plastic Thermoplastic housing in White. Benefit: quick status checks on-site and durable, low-cost materials for long-term reliability. Application: high-traffic installations where quick diagnostics matter. Compliance-related features include SCIP Spain ES, CMRT, and WEEE Category 5 with B2C/B2B applicability, aiding regulatory alignment and sustainable procurement.
Get a Quick Quote for a ABB 2CLA226090B1101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226090B1101?
Enquire Now
FAQs
Yes. The dimmer is designed for 1-10V control inputs and supports 127-230 VAC supply, operating at 50-60 Hz. It is flush-mounted in a 44x44 frame with screw-type connections, making it compatible with common 44x44 wall boxes and panel configurations.
The device supports up to 700 VA at 230 VAC and 350 VA at 127 VAC, with a maximum of six ballasts per unit. This makes it suitable for mid-sized lighting runs while maintaining reliable dimming performance.
Ideal for commercial interiors such as offices, retail spaces, and light-industrial environments where consistent 1-10V dimming is required. The flush-mounted 44x44 frame and IP20 protection ensure a neat installation in indoor dry locations.
The device carries SCIP registration (Spain ES), CMRT for responsible sourcing, and WEEE categorization (Category 5 Small Equipment) with B2C/B2B applicability, supporting sustainable procurement and regulatory alignment.
Key advantages include a compact 44x44 frame, screw-terminal connections for reliable wiring, an indicator LED for quick diagnostics, and a lightweight 0.069 kg housing. The unit’s design minimizes retrofit complexity and supports long-term energy savings through efficient 1-10V dimming.
