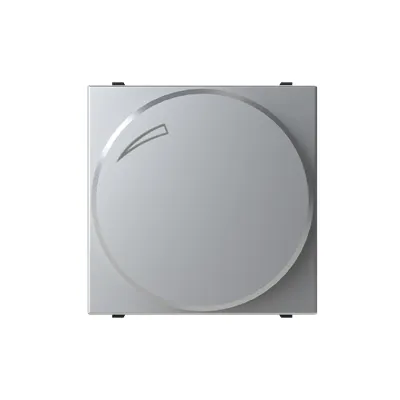

ABB 2CLA226090B1301 Dimmer Silver - Zenit BS IP20
Part Number: 2CLA226090B1301
Quick Summary
ABB 2CLA226090B1301 Dimmer Silver is a rotary 1-10V dimmer designed for Zenit BS framing in commercial lighting control. Installing lighting controls can be a chronic headache due to limited ballast compatibility and complex wiring, especially when retrofitting older systems. This device aligns with SCIP (Spain) for material pass-through, CMRT data for responsible sourcing, and WEEE category 5 disposal considerations, helping you meet regulatory expectations. Built for panel-ready integration and predictable performance, it supports up to six ballasts per device and a wide operating voltage range for flexible applications. With a compact Zenit BS design, IP20 protection, and a 44x44 frame footprint, it delivers reliable dimming while keeping installation costs and downtime low.
Product Information
Extended Description
2CLA226090B1301 ABB: Rated voltage: 127 - 230 Vac / 50 - 60 Hz
Dimmable electronic ballast/driver with 1-10V control input.
Max. power:
- 230 Vac: 700 VA
- 127 Vac: 350 VA
Max. 6 ballasts per device
Indicator LED lamp included
Combine with frame window 44x44 – Multi.
Instructions and Manuals
Installation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Installation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Zenit BS
Surface Finishing
Decor, Matt
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Silver
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
32 mm
Product Net Weight
0.069 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0554cd14-d14a-4fa2-85c2-dad3f593af7c Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Rated for 127-230 VAC at 50-60 Hz and featuring 1-10V control input, this dimmer enables seamless integration with existing electronic ballasts for efficient, dimmable lighting. Business impact: broader compatibility reduces retrofitting costs and shortens project timelines; application: office, retail, or industrial spaces where precise light control is essential. Max loads of 700 VA at 230V and 350 VA at 127V, with support for up to six ballasts per device, translate into fewer devices and simplified wiring, lowering inventory and installation labor. Business impact: lower capex and opex with scalable lighting control; application: large-area luminaires and multi-ballast installations. Flush-mounted mounting with a snap engage fastening and screw terminals provides robust, easy installation, while IP20 protection ensures reliable operation in controlled environments; application: concealed installations in corporate dashboards or wall enclosures. Material and finish follow Zenit BS aesthetics with plastic thermoplastic construction, 44x44 mm frame compatibility, and a 32 mm depth, enabling compact integration in standard switch panels. Professional compliance considerations are addressed with SCIP, CMRT, and WEEE markers to support sustainable procurement and regulatory alignment; application: compliant rollout in regulated markets. The device is designed for energy-efficient, low-maintenance operation with clear indicator LED status and a non-illuminated profile, suitable for renovation projects where minimal visual impact is desired.
Get a Quick Quote for a ABB 2CLA226090B1301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226090B1301?
Enquire Now
FAQs
This dimmer is flush-mounted for Zenit BS frame windows (44x44) and uses a screw-terminal connection. It features a snap engagement mounting mechanism for quick, secure installation. With IP20 protection and a compact 32 mm depth, it fits standard enclosures while minimizing panel intrusion. Ensure the frame is compatible and that the enclosure provides adequate ventilation for safe operation of the dimmer and its indicator LED.
The device supports up to six electronic ballasts per unit, with a maximum load of 700 VA at 230 VAC or 350 VA at 127 VAC. This enables consolidated control for mid-to-large lighting circuits while reducing the need for multiple dimmer modules and simplifying wiring, especially in spaces with consistent voltage distribution.
Yes. The dimmer uses a screw connection and is designed for flush mounting in Zenit BS frame windows. The snap engagement mechanism facilitates fast, secure installation, and the compact 44x44 mm footprint helps minimize panel space usage. This makes it suitable for both new installations and retrofits where minimal disruption is critical.
The dimmer aligns with CMRT for conflict mineral reporting, SCIP (Spain) identification, and WEEE category 5 for small equipment disposal. REACH information is listed as no data. For procurement, these certifications support responsible sourcing, regulatory compliance in European markets, and easier end-of-life planning, reducing compliance risk and facilitating sustainability reporting.
Adopting this dimmer can reduce project risk and downtime due to its compatible 1-10V dimming approach and single-device ballast control (up to six ballasts). The compact form factor and Zenit BS framing simplify installation, lowering labor costs. Ongoing maintenance is straightforward with screw-terminal wiring and a status LED, supporting quick diagnostics and reduced service intervals in commercial environments.
