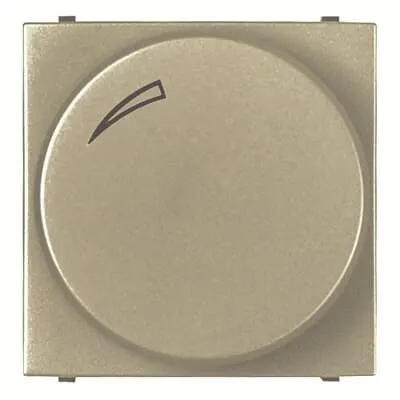

ABB 2CLA226090B1901 Dimmer Champagne - Zenit BS - IP20
Part Number: 2CLA226090B1901
Quick Summary
ABB 2CLA226090B1901 dimmer is designed to precisely control 1-10 V dimmable drivers in commercial lighting and industrial environments. Engineers often struggle with flicker, incompatible ballasts, and bulky, hard-to-service installations in flush-mounted control panels. It features IP20 protection and aligns with SCIP registration in Spain and WEEE categorization, supporting regulatory compliance for both business-to-business and business-to-consumer deployments. Its universal 127-230 VAC range and 1-10 V input enable flexible, scalable lighting control across multiple fixtures, while a compact form factor reduces cabinet space and simplifies retrofits. By combining robust construction with easy mounting and clear documentation, ABB helps facilities managers lower operating costs and improve lighting reliability without sacrificing aesthetics or safety.
Product Information
Extended Description
2CLA226090B1901 ABB: Rated voltage: 127 - 230 Vac / 50 - 60 Hz
Dimmable electronic ballast/driver with 1-10V control input.
Max. power:
- 230 Vac: 700 VA
- 127 Vac: 350 VA
Max. 6 ballasts per device
Indicator LED lamp included
Combine with frame window 44x44 – Multi.
Instructions and Manuals
Installation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Installation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Zenit BS
Surface Finishing
Decor, Matt
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Champagne
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
32 mm
Product Net Weight
0.069 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
97730d8e-c180-4873-9db7-47e81cef0340 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Feature: 1-10 V dimming input and high-load capability. Business Impact: Enables precise light control and energy savings across up to six ballasts per device, improving occupancy comfort and reducing energy waste. Application: Ideal for 127-230 V lighting circuits in offices, corridors, and light industrial spaces using electronic ballast systems. Feature: Flush-mounted, snap-engage mounting within a 44x44 frame. Business Impact: Quick, tool-free installation reduces commissioning time and delivers a clean, professional appearance. Application: Retrofit projects and new builds in architectural interiors that use Zenit BS frames. Feature: IP20 protection and wide operating range (-5°C to +50°C). Business Impact: Reliable operation in typical indoor environments with minimized risk from dust ingress and temperature swings. Application: Indoor control panels, manufacturing floors, and warehouses. Feature: Screw connection and status indication. Business Impact: Secure wiring minimizes fault risk while the indicator LED supports fast commissioning and ongoing troubleshooting. Application: Maintenance workflows and panel-level dimming installations. Feature: Aesthetic and frame compatibility with Champagne finish. Business Impact: Visual coherence with Zenit BS decor, reducing installation rework and enhancing brand integrity. Application: New installations and upgrades in customer-facing or design-conscious environments.
Get a Quick Quote for a ABB 2CLA226090B1901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226090B1901?
Enquire Now
FAQs
This dimmer uses screw terminals for a secure connection and is flush-mounted in a 44x44 frame to fit standard panels. Connect the 127-230 VAC supply to the device, attach the 1-10 V control lines to the dimmer input, and wire up to six electronic ballasts. Refer to the installation sheet Rotatory 1-10V dimmer 8660.9, N2260.9, AMD60944 for step-by-step guidance and ensure the unit is installed in a compliant IP20 enclosure.
The dimmer supports 1-10 V control with a maximum load of 700 VA at 230 V or 350 VA at 127 V, and it can drive up to six ballasts per device. It is non-illuminated itself and designed for dimmable electronic ballast systems. This combination ensures smooth dimming, predictable performance, and compatibility with Zenit BS lighting products in typical indoor environments.
Yes. The unit is designed for flush-mounted installation within Zenit BS Champagne frames and is compatible with standard 44x44 frame systems. It provides IP20 protection and operates across -5°C to +50°C, making it suitable for indoor industrial spaces, offices, and mixed-use facilities where reliable, aesthetically consistent lighting control is required.
The dimmer features IP20 protection and is associated with WEEE category 5 for small equipment, with SCIP registration (Spain, ES). While CE markings aren’t explicitly listed here, the device complies with relevant regional waste and environmental reporting requirements, supporting responsible end-of-life handling and regulatory alignment for both B2B and B2C deployments.
Maintenance is minimal due to solid-state 1-10 V dimming and screw-terminal wiring that reduces loose connections. The indicator LED aids commissioning and fault finding, shortening downtime. The ability to dim multiple ballasts and operate at standard mains voltages translates to energy savings, longer ballast life, and lower total cost of ownership for facilities with extensive lighting control needs.
