2CLA226090N1801
Part Number: 2CLA226090N1801
Product Information
Extended Description

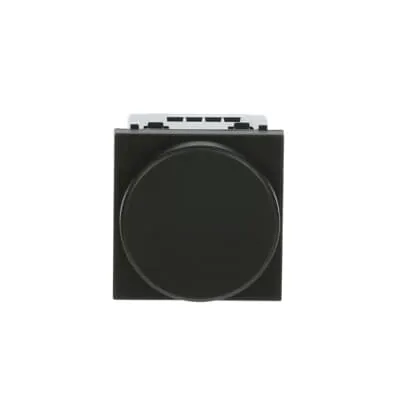

2CLA226090N1801 ABB: Color: Anthracite.
Rated voltage: 127 - 230 Vac / 50 - 60 Hz
Dimmable electronic ballast/driver with 1-10V control input.
Max. power:
- 230 Vac: 700 VA
- 127 Vac: 350 VA
Max. 6 ballasts per device
Indicator LED lamp included
Size: 2 modules.
Instructions and Manuals
Installation and operating instructions - Rotatory 1-10V dimmer 8660.9, N2260.9 & AMD60944
Mounting Type
Flush Mounted
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Actuator Type
Turn button
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
230...230 V
Frequency (f)
50...50 Hz
Load Type
Electronic ballast 1-10 V
Power Watt
700...700 V·A
Control Supply Voltage
1 ...10 V
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Anthracite
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
53 mm
Product Net Weight
69 g
Built-In Depth (t2)
54 mm
Replaced Product ID (OLD)
2CLA226090N1802
RoHS Information
2CLA226090N1801_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
3050427b-b31d-4b1c-891d-f717f84d13a6 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC000025 - Dimmer
UNSPSC
39122206
