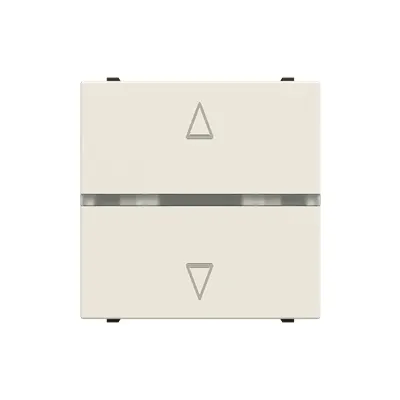

ABB 2CLA226121N1801 Blind Control Switch - Zenit IP20
Part Number: 2CLA226121N1101
Quick Summary
ABB 2CLA226121N1801 Blind Control Switch enables compact, two-gang control of blinds in building automation. Engineers often struggle with space constraints, wiring complexity, and inconsistent control from multiple locations. This device ships with CE conformity, IP20 protection, and material compliance data, supporting safe indoor use and regulatory traceability. Its flush-mounted, snap-fit design and Plug Clamp connection simplify installation, while the N2261.2 compatibility supports PERS, LAM, and Centralization options. For businesses, the Zenit design offers reliable, scalable blind control with predictable maintenance and lower total cost of ownership.
Product Information
Extended Description
2CLA226121N1101 ABB: Color: White.
Rated voltage: 110 - 250 Vac; 50/60 Hz.
Rated current: 700VA@230Vac / 350VA@127Vac.
Direct control.
Functions:
- PERS: standard blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations.
- LAM: venetian type blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations.
- Centralization (CEN): one N2261.2 can control all the N2261.2 centrally.
Included: white locator LED.
Size: 2 modules.
Instructions and Manuals
Instructions electronic blind switch
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Poles
1P
Number of Buttons
2
Wiring Configuration
Off switch 1-pole
Actuator Type
Rocker
Connection Type
Plug Clamp
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
0.7 A
Design Range
Zenit
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
69 g
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f3f8627e-d286-4fdf-97ba-73264d8a2516 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC001590 - Installation switch
UNSPSC
39122226
The ABB 2CLA226121N1801 Blind Control Switch is designed as a compact 2-gang, 1-pole rocker with flush-mounted installation. It reduces panel depth and wiring complexity, enabling faster integration in office and industrial automation environments, while improving reliability with a robust Plug Clamp connection and a white locator LED for quick status checks. Electrical ratings 110-250 VAC and 0.7 A (700 VA at 230 VAC) support common blinds and Venetian blind scenarios, with 2 modules width (44 mm) and 73 mm depth for space-efficient mounting. N2244 inserts can be connected to the N2261.2 to control blinds from multiple locations, and Centralization lets a single N2261.2 coordinate several units. The Zenit surface finish in Anthracite complements modern control panels and ensures durable operation in dry indoor settings.
Get a Quick Quote for a ABB 2CLA226121N1101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226121N1101?
Enquire Now
FAQs
The 2CLA226121N1801 uses a Plug Clamp wiring connection and is designed for flush-mounted installation. To enable central control, connect N2244 inserts to N2261.2 according to the Zenit manuals, ensuring the single control point coordinates all units via the N2261.2 module for centralized operation.
It is rated for 110-250 VAC and 0.7 A (700 VA at 230 VAC). The device is suitable for standard PERS and LAM blinds, including venetian types, when used with appropriate N2244 inserts and the N2261.2 system.
Yes. The LAM function supports venetian blinds, and the 1P/2G design, along with flush-mounted installation, makes it ideal for conference rooms and similar spaces requiring centralized, reliable blind control with easy wiring.
The switch carries CE conformity, IP20 protection, and is documented under SCIP and CMRT for responsible material sourcing. WEEE categorization as Small Equipment is noted, aiding compliant end-of-life handling and sustainability reporting.
The device uses a durable thermoplastic housing and a robust Plug Clamp connection that reduces field wiring faults. The white locator LED provides quick status checks, and the modular Zenit design supports scalable expansions, lowering total cost of ownership through easier upgrades and fewer service calls.
