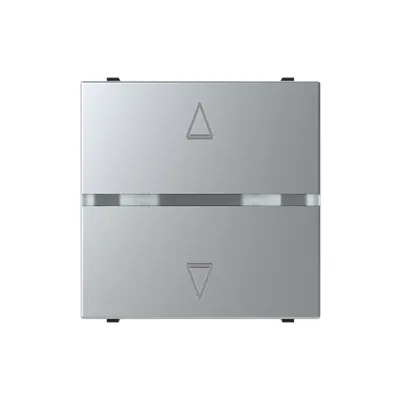

ABB 2CLA226121N1301 Blind control switch - CE
Part Number: 2CLA226121N1301
Quick Summary
ABB 2CLA226121N1301 Blind control switch is a compact, 2‑gang, 1‑pole push-button solution for automated blinds and centralized lighting control. Engineers often struggle with inconsistent operation and retrofit friction when upgrading existing panels. This device carries CE certification, IP20 protection, and WEEE/SCIP compliance to meet regulatory and environmental demands. Designed for Zenit aesthetics and easy ABB ecosystem integration, it delivers quick installations, reliable local control, and scalable automation across commercial and residential spaces. The solution also complements common N2244 inserts for multi-location control, while the white locator LED improves visibility in dim environments.
Product Information
Extended Description
2CLA226121N1301 ABB: Color: Silver.
Rated voltage: 110 - 250 Vac; 50/60 Hz.
Rated current: 700VA@230Vac / 350VA@127Vac.
Direct control.
Functions:
- PERS: standard blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations.
- LAM: venetian type blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations.
- Centralization (CEN): one N2261.2 can control all the N2261.2 centrally.
Included: white locator LED.
Size: 2 modules.
Instructions and Manuals
Instructions electronic blind switch
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Poles
1P
Number of Buttons
2
Wiring Configuration
Off switch 1-pole
Actuator Type
Rocker
Connection Type
Plug Clamp
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
0.7 A
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
Silver
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
69 g
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
50b1bcdf-b307-42b5-83aa-41b940d63c05 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC001590 - Installation switch
UNSPSC
39122226
Feature: 2‑gang 1‑pole rocker with direct control → Business Impact: Simplifies wiring and reduces panel footprint, enabling faster commissioning → Application: Ideal for motorized blinds and adjacent lighting circuits in flush-mounted panels. Long‑tail keywords: flush-mounted rocker switch, 2‑module footprint, 1P 2‑gang. Feature: Flush-mounted, 44 mm x 44 mm footprint with 73 mm depth → Business Impact: Saves enclosure space and minimizes required panel depth → Application: Suitable for compact switchgear in control cabinets. Long‑tail keywords: compact switchgear, 2‑module size, panel saving. Feature: Plug Clamp connection → Business Impact: Faster, secure wiring with fewer loose connections → Application: Installation efficiency in new builds and retrofits. Long‑tail keywords: plug clamp wiring, reliable connections. Feature: PERS, LAM, CEN functions → Business Impact: Flexible blinds control and centralized management → Application: Centralized automation in smart buildings and multi-room setups. Long‑tail keywords: centralization N2261.2, Venetian blinds control. Feature: White locator LED included → Business Impact: Improves operator visibility and reduces misoperation in low light → Application: Benchtop and wall panel installations where indicators are needed. Long‑tail keywords: locator LED, visibility enhancement. Feature: Certifications and compliance → Business Impact: Regulatory and environmental due diligence, reduces risk in audits → Application: Corporate compliance programs and B2B deployments. Long‑tail keywords: CE declaration, WEEE compliance, SCIP registration, ETIM 9 EC001590.
Get a Quick Quote for a ABB 2CLA226121N1301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226121N1301?
Enquire Now
FAQs
The unit is flush-mounted and uses a plug clamp connection for wiring. Align it to a 2‑module footprint, secure with the snap‑in mounting, and connect live and neutral per the 1P wiring configuration. It supports N2244 inserts for multi-location control and can be combined with the N2261.2 for centralized operation.
Rated voltage is 110–250 Vac, rated current 0.7 A, and 700 VA at 230 Vac. It is designed for standard blinds control (PERS) and venetian blinds (LAM), with optional centralization (CEN) across multiple units.
Yes. The model supports CEN functionality, allowing a single N2261.2 to centrally manage multiple switches. This simplifies building management and reduces wiring complexity in larger installations.
It carries CE conformity, IP20 protection for indoor use, and compliance with WEEE and SCIP requirements. Additional references include ETIM EC001590 and the Zenit Declaration of Conformity, supporting regulatory and sustainability objectives.
The robust plug clamp wiring, 2‑module footprint, and integrated LED locator reduce maintenance time and misoperation risk. The compatibility with N2244 inserts and N2261.2 enables scalable upgrades without extensive rewiring, delivering faster ROI in retrofits and new builds.
