2CLA226121N1901
Part Number: 2CLA226121N1901
Product Information
Extended Description

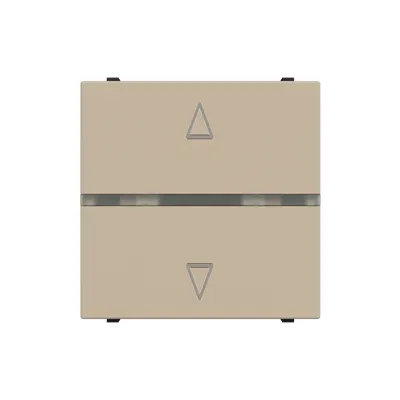

2CLA226121N1901 ABB: Color: Champagne.
Rated voltage: 110 - 250 Vac; 50/60 Hz.
Rated current: 700VA@230Vac / 350VA@127Vac.
Direct control.
Functions:
- PERS: standard blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations.
- LAM: venetian type blinds control. Optionally other N2244 inserts can be connected to the N2261.2 to control the blind from other locations.
- Centralization (CEN): one N2261.2 can control all the N2261.2 centrally.
Included: white locator LED.
Size: 2 modules.
Instructions and Manuals
Instructions electronic blind switch
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Poles
1P
Number of Buttons
2
Wiring Configuration
Off switch 1-pole
Actuator Type
Rocker
Connection Type
Plug Clamp
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
0.7 A
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
Champagne
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
69 g
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC001590 - Installation switch
UNSPSC
39122226
