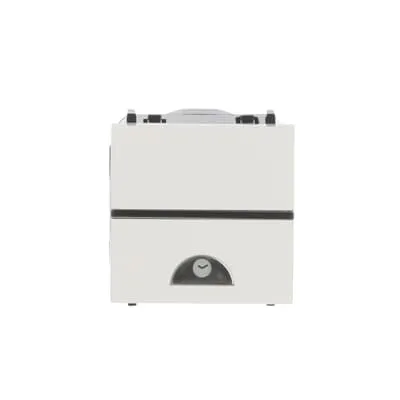

ABB 2CLA226210N1101 Time Switch - Zenit CE Certified
Part Number: 2CLA226210N1101
Quick Summary
ABB 2CLA226210N1101 Time Switch is a programmable lighting-control device ideal for commercial and residential schedules. Manual scheduling is error-prone and wastes energy, especially in busy facilities where lights stay on longer than needed. It delivers CE conformity with RoHS and REACH compliance, and IP20 protection for safe indoor use, meeting common regulatory requirements. The Zenit design supports 230 V systems and ensures a compact footprint that simplifies retrofits. By automating on/off cycles, it reduces energy costs, extends lamp life, and improves occupancy comfort, helping facilities managers meet sustainability targets without sacrificing reliability or ease of use.
Product Information
Extended Description
2CLA226210N1101 ABB: Color: White.
Rated voltage: 230 Vac / 50 Hz
Power:
- Incandescent: 40 - 500 W
- Halogen with transformer: 40 - 400 VA
- Motors: 40 - 100 VA
2 wire connection
Delay setup: 10 sec. to 10 min.
Overcurrent protection: with fuse
Indicator LED lamp included
Operating temperature: 0 - 40ºC
Size: 2 modules.
Instructions and Manuals
Manual - Timer switch - N2262.1 / 8162.1 / 2262.1
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Minimum Switching Time
0.17 minute [unit of time]
Time Range
0.16 ... 10_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
2.1 A
Frequency (f)
50 ... 50 Hz
Power Watt
500 W
Number of Contacts NO
1
Design Range
Zenit
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
42 mm
Product Net Weight
69 g
Built-In Depth (t2)
33.5 mm
Replaced Product ID (OLD)
2CLA226200N1101 | 2CLA226200N1102
RoHS Information
2CLA226210N1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
3f8f41d8-270a-4091-b73d-b518651aee1d Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC001594 - Time switch clock for domestic switching devices
230 V operation with 50 Hz support and a 1 NO contact provides reliable, scalable control for common loads, reducing manual intervention and enhancing system safety. This translates into predictable performance and lower nuisance tripping for lighting circuits in offices and retail spaces. The device supports incandescent loads up to 500 W, halogen with transformers up to 400 VA, and motors up to 100 VA, covering typical small-load scenarios without over-engineering panel design. The time range from 0.16 to 10 minutes and delay setup from 10 seconds to 10 minutes enable precise scheduling, cutting energy waste during idle hours and allowing alignment with shift patterns and occupancy. Flush-mounted, snap-engaged mounting and a 2-module width streamline retrofits, while a 2-wire connection minimizes wiring complexity and installation time. Overcurrent protection via fuse and an indicator LED speed commissioning and fault identification, boosting reliability in daily operation. The Zenit design, IP20 protection, and 0–40 °C operating range ensure dependable indoor performance and straightforward compatibility with existing ABB Zenit enclosures.
Get a Quick Quote for a ABB 2CLA226210N1101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226210N1101?
Enquire Now
FAQs
This time switch is designed for flush-mounted installation with snap engagement, spanning 2 modules in width. It uses a 2-wire connection for simple wiring and fits interior panels with IP20 protection, making retrofits straightforward in existing Zenit enclosures.
It operates at 230 V, 50 Hz, with a rated current of 2.1 A and supports loads up to 500 W for incandescent lamps, 40–400 VA for halogen with transformer, and 40–100 VA for motors. It has one normally-open contact and a delay range of 0.16 to 10 minutes with a 10-second to 10-minute setup window.
Yes. The device carries CE conformity, RoHS and REACH compliance, and is designed for safe indoor use with IP20 protection, aligning with common regulatory requirements in commercial buildings and offices.
Automated scheduling reduces wasted lighting hours, lowering energy costs and extending lamp life. Precise on/off control helps maintain occupancy comfort, while the built-in LED indicator and fuse protection simplify commissioning and fault diagnosis, contributing to lower maintenance costs over time.
Common concerns include retrofit complexity and panel space. The 2-module, flush-mounted design with 2-wire wiring minimizes space and wiring effort, while IP20 and 0–40 °C operation ensure reliable indoor use. The Zenit aesthetic also allows seamless integration into existing enclosures without major redesigns.
