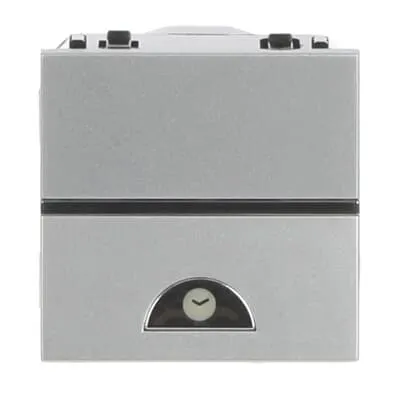

ABB 2CLA226210N1301 Time switch - CE Declaration
Part Number: 2CLA226210N1301
Quick Summary
ABB 2CLA226210N1301 Time switch is an electronic timer that precisely controls lighting in commercial spaces. Many facilities struggle with energy waste and inconsistent on/off schedules, leading to higher utility costs and manual labor. This Zenit-designed timer carries CE certification and IP20 protection, ensuring safe indoor use, while offering a compact, flush-mounted solution. With a 0.16 to 10 minute delay range and 230 V operation, it aligns with standard office and retail control circuits. Its 2-wire connection and 1 NO contact deliver straightforward integration, reducing installation time and maintenance while supporting energy-efficient building management. The result is predictable lighting control that scales from small offices to larger zones, delivering measurable cost savings and reliability.
Product Information
Extended Description
2CLA226210N1301 ABB: Color: Silver.
Rated voltage: 230 Vac / 50 Hz
Power:
- Incandescent: 40 - 500 W
- Halogen with transformer: 40 - 400 VA
- Motors: 40 - 100 VA
2 wire connection
Delay setup: 10 sec. to 10 min.
Overcurrent protection: with fuse
Indicator LED lamp included
Operating temperature: 0 - 40ºC
Size: 2 modules.
Instructions and Manuals
Manual - Timer switch - N2262.1 / 8162.1 / 2262.1
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Minimum Switching Time
0.17 minute [unit of time]
Time Range
0.16 ... 10_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
2.1 A
Frequency (f)
50 ... 50 Hz
Power Watt
500 W
Number of Contacts NO
1
Design Range
Zenit
Surface Finishing
Decor | Glossy
Material
Plastic | Thermoplastic
Color
Silver
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
42 mm
Product Net Weight
69 g
Built-In Depth (t2)
33.5 mm
Replaced Product ID (OLD)
2CLA226210N1302 | 2CLA226210N1303
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Feature → Business Impact → Application: The ABB 2CLA226210N1301 Time switch operates on 230 V with a 50 Hz supply and delivers up to 2.1 A and 500 W, supporting single NO lighting or small-load control with predictable on/off cycles. This translates to tangible energy savings and extended lamp life when used for office, retail, or workshop illumination, especially where scheduled lighting reduces waste. Feature → Business Impact → Application: A delay range of 0.16 to 10 minutes enables precise scheduling for wake-up, signage, or task lighting, minimizing unnecessary illumination during off-peak periods and ensuring quick response for occupancy-based control in commercial environments. Feature → Business Impact → Application: Flush-mounted design and snap fastening simplify retrofits and new-build installs, reducing wiring complexity and project time while preserving a neat control panel appearance in offices and production areas. Feature → Business Impact → Application: IP20 protection, a 0–40 °C operating window, and built-in depth of 33.5 mm provide reliable indoor performance in typical control cabinets, switchboards, and wall boxes, improving uptime for critical lighting and small-motor starts. Feature → Business Impact → Application: Zenit aesthetics with silver finish and 44x44 mm footprint integrates seamlessly into modern control schemes, offering a visually consistent solution for architectural lighting projects and customer-facing installations. Feature → Business Impact → Application: CE conformity and CMRT/WEEE compliance reduce regulatory risk and support responsible procurement, which is essential for audited facilities and corporate sustainability programs.
Get a Quick Quote for a ABB 2CLA226210N1301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226210N1301?
Enquire Now
FAQs
The unit is designed for flush-mounted installation with Engage (Snap) fastening and a two-wire connection. It fits a standard 2-module space and uses a built-in depth of 33.5 mm. This makes retrofits and new-build projects easier, especially when integrating with compatible Zenit switch plates in offices, shops, and light industrial areas.
Key specs include rated voltage 230 V, frequency 50 Hz, rated current 2.1 A, power up to 500 W, and 1 NO contact. Delay range is 0.16 to 10 minutes, with a 2-wire connection. It is rated IP20 and operates from 0 to 40 °C, suitable for indoor control of lighting and small loads.
It is primarily designed for lighting control and small-load applications, such as office lights and signage, within its 500 W/VA limits and 1 NO contact. While suitable for small motors, verify motor starting torque and duration against the 2.1 A rating to ensure compliance and avoid overloading the timer.
This timer carries CE declaration of conformity and is designed for indoor use with IP20 protection. It also aligns with WEEE and CMRT guidelines, supporting sustainable disposal and responsible sourcing. Compliance simplifies regulatory approvals in many regions and supports audit-ready procurement for facilities managers.
Expect low maintenance due to solid-state timing with a simple two-wire setup and a compact form factor that reduces wiring errors. ROI comes from energy savings through precise scheduling, extended lamp life, and reduced labor during installation and commissioning, particularly in multi-zone offices or retail environments where automated control yields rapid payback.
