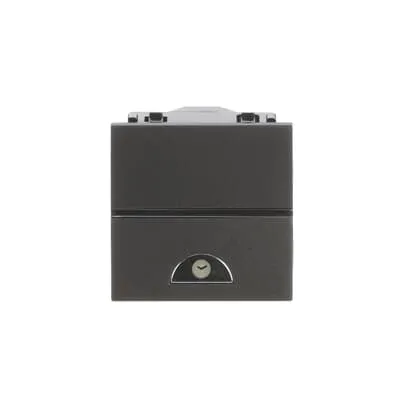

ABB 2CLA226210N1801 Time switch - Zenit IP20
Part Number: 2CLA226210N1801
Quick Summary
ABB 2CLA226210N1801 Time switch is a reliable electronic timer designed for lighting and motor control in industrial panels. It helps engineers replace guesswork with precise, programmable delays in 0.16 to 10 minutes, reducing energy waste and extending equipment life. Operators often struggle with flaky schedules and hard-to-change timers; this unit delivers a simple 2-wire connection, compact flush mounting, and a clear LED indicator for quick verification. The Zenit design aligns with CE, RoHS, and WEEE requirements, supporting safe integration into modern control cabinets. In addition to compliance, its 230 V supply and 2.1 A rating offer solid compatibility with standard industrial lighting and small-motor circuits, delivering measurable efficiency and predictable maintenance cycles.
Product Information
Extended Description
2CLA226210N1801 ABB: Color: Anthracite.
Rated voltage: 230 Vac / 50 Hz
Power:
- Incandescent: 40 - 500 W
- Halogen with transformer: 40 - 400 VA
- Motors: 40 - 100 VA
2 wire connection
Delay setup: 10 sec. to 10 min.
Overcurrent protection: with fuse
Indicator LED lamp included
Operating temperature: 0 - 40ºC
Size: 2 modules.
Instructions and Manuals
Manual - Timer switch - N2262.1 / 8162.1 / 2262.1
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Minimum Switching Time
0.17 minute [unit of time]
Time Range
0.16 ... 10_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
2.1 A
Frequency (f)
50 ... 50 Hz
Power Watt
500 W
Number of Contacts NO
1
Design Range
Zenit
Surface Finishing
Decor | Glossy
Material
Plastic | Thermoplastic
Color
Anthracite
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
42 mm
Product Net Weight
69 g
Built-In Depth (t2)
33.5 mm
Replaced Product ID (OLD)
2CLA226210N1802 | 2CLA226210N1803
RoHS Information
2CLA226210N1801_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Feature: Programmable time range from 0.16 to 10 minutes enables precise on/off control. Business impact: reduces energy consumption in lighting and small motor applications by matching actual usage patterns. Application: lighting control in commercial panels with predictable schedules. Feature: 230 V / 50 Hz operation and 2.1 A nominal current ensures compatibility with standard mains wiring. Business impact: minimizes retrofit costs and simplifies procurement. Application: assemblies in automation cabinets and service panels. Feature: 2-wire connection and flush-mounted design simplify installation and retrofits. Business impact: lowers installation time and reduces wiring complexity. Application: retrofits in existing control enclosures and new panel builds. Feature: IP20 protection and Zenit styling provide safe interior use and a modern appearance. Business impact: improves reliability in dry indoor environments and reduces maintenance concerns. Application: internal panel mounting in industrial automation systems. Feature: Overcurrent protection via fuse and LED indicator enable quick fault identification. Business impact: enhances safety and minimizes downtime through fast diagnostics. Application: service panels with limited accessibility. Feature: Replaced product compatibility with older 2CLA226210N1802/1803 ensures continuity. Business impact: protects prior investment and simplifies migration. Application: updating legacy installations in fielded equipment.
Get a Quick Quote for a ABB 2CLA226210N1801
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA226210N1801?
Enquire Now
FAQs
Installation is straightforward with a 2-wire connection and snap engage mounting. Ensure the panel interior is within IP20 environmental limits and that the fuse-protected circuit is rated for up to 500 W incandescent or 400 VA transformer loads. Verify operation with the built-in LED and test the timing range from 0.16 to 10 minutes for the target load.
The device operates at 230 V, 50 Hz, with a nominal current of 2.1 A and a maximum power of 500 W for incandescent loads or 400 VA for transformer-based halogen loads, plus 1 NO contact. Time range spans 0.16 to 10 minutes, with a minimum switching time of approximately 0.17 minutes.
Yes. The product carries a CE Declaration of Conformity for European markets, is RoHS compliant under EU Directive 2011/65/EU and Amendment 2015/863, and is categorized under WEEE as a consumer/industrial disposal consideration. This combination supports regulatory compliance in most industrial automation environments.
Absolutely. With a 230 V supply, 2.1 A rating, and a 1 NO contact arrangement, it is well suited for controlling lighting circuits, fans, and small motors in control panels. The flush-mounted Zenit form factor simplifies integration in standard enclosures, delivering reliable, timer-based automation with easy commissioning.
Check compatibility with the legacy panel: match the 230 V mains, verify load compatibility for incandescent or transformer-based loads, and confirm IP20 interior protection. The device replaces older models 2CLA226210N1802/1803, preserving form factor and connection method, while offering improved timing range and a modernized CE/RoHS/WEEE compliant design.
