2CLA228800N1866
Part Number: 2CLA228800N1866
Product Information
Extended Description

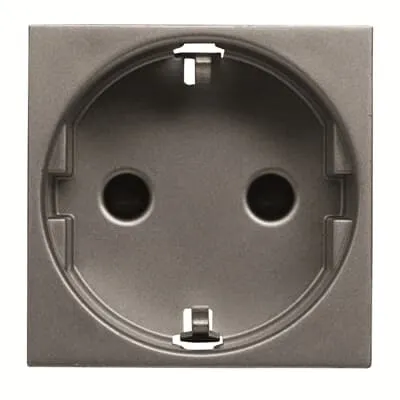

2CLA228800N1866 ABB: 16 A, 230 V~
With a safety system to avoid direct accidental contact.
Protection class: IP21
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Phases
2
Number of Active Pin Terminals
0
Number of Gangs
1
Connection Type
Screw Clamp
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 60 Hz
Power Supply Type
External
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
Color
Anthracite
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
94 g
Replaced Product ID (OLD)
2CL0BN228808
ABB EcoSolutions
Yes
Circular Design Principles Ecodesign
9AKK108468A3800
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 92 %
Environmental Product Declaration - EPD
EPD ABBG-00220-V01.02-EN 2288 PROTECTIVE CONTACT (SCHUKO) 1 GANG ZENIT SOCKET
RoHS Information
2CLA228800N1866_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
d08f9beb-a288-4810-9e27-cd644c7f4593 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
