2CLA228860A1101
Part Number: 2CLA228860A1101
Product Information
Extended Description

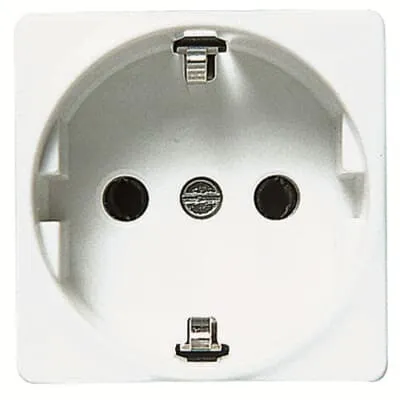

2CLA228860A1101 ABB: 16 A / 250 V~.
Screwless connection. Each clamp receives a flexible cable up to 2 x 2,5 mm2 or a rigid thread until 2 x 4 mm2.
Saving wiring time by up to 40%.
With a safety system to avoid direct accidental contact.
Protection level: IP21
Mounting Type
Flush Mounted
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP21
Number of Phases
2
Number of Active Pin Terminals
0
Number of Gangs
1
Connection Type
Plug Clamp
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50...60 Hz
Design Range
Stylo
Surface Finishing
Untreated | Glossy
Material
Duroplast | Plastic
Legend
Without imprint
Label Space Provided
No
Color
White
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Weight
0.05 kg
Replaced Product ID (OLD)
2CL0228861
RoHS Information
2CLA228860A1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
