2CLA280300B1001

Part Number: 2CLA280300B1001
Manufacturer
ABB
Part number
2CLA280300B1001

Product Information

Extended Description

2CLA280300B1001 ABB: Input: 250Vac / 20VA Outputs: 115V and 230V Size: 150x90x54 mm Compatible with box model: 803.2 Combines with faceplate: AMD28030.0
Instructions and Manuals

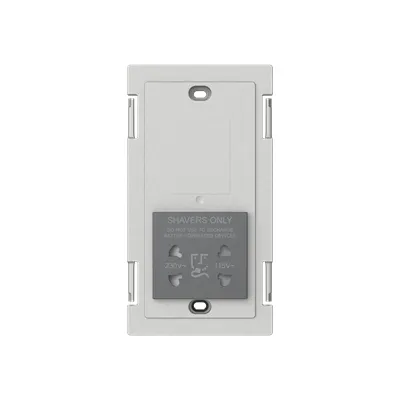

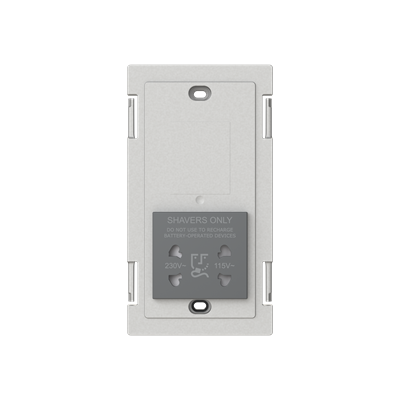

Shaver socket outlet
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Shaver socket outlet
Connection Type
Screw
Socket Outlet Type
Shaver
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Zenit BS
Surface Finishing
Untreated, Glossy
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Anthracite Polished
Product Net Width
86 mm
Product Net Height
86 mm
Product Net Depth / Length
42 mm
Product Net Weight
0.349 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
