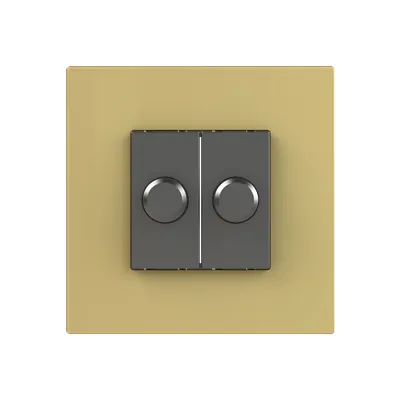

2CLA616049N1701
Part Number: 2CLA616049N1701
Product Information
Extended Description
2CLA616049N1701 ABB: Rated voltage: 230 Vac ± 10%.
Frequency: 50/60 Hz
Power (min./max load):
L-mode:
- LEDi (leading-edge): 4 / 100 W/VA (max. 10 lamps).
T-mode:
- LEDi (trailing-edge): 4 / 250 W/VA (max. 10 lamps).
- LV LEDi with 12V transformer (L or LC): 4 / 250 W/VA (max. 10 lamps).
- Incandescent lamps: 4 / 250 W/VA.
- Halogen lamps: 10 / 250 W/VA.
3 wire connection.
OFF position
Back-up fuse: Electronic.
Overload protection: Electronic.
Ambient temperature: 0° C to +35° C.
Includes frame and metal support
Instructions and Manuals
Installation manual - 110-230V LED/Universal Rotary Dimmer and
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Environmental Information
Doc 42-03-03 Dimmer
Data Sheet, Technical Information
9AKK106930A7740
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Millenium
Surface Finishing
Decor, Matt
Material
Metal
Label Space Provided
Yes
Color
Matt Gold
Product Net Width
0.102 m
Product Net Height
0.062 m
Product Net Depth / Length
0.102 m
Product Net Weight
0.158 kg
RoHS Information
2CLA616049N1701_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000025 - Dimmer
