2CLA620500N1101
Part Number: 2CLA620500N1101
Product Information
Extended Description

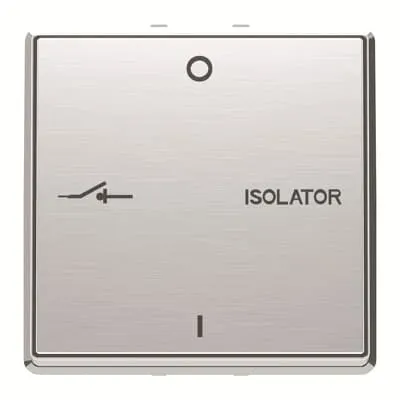

2CLA620500N1101 ABB: Rated voltage: 250Vac
Rated power: 10A
3 poles
Instructions and Manuals
9AKK106930A7740
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK106930A7740
Function
Fan Isolator
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
3-pole switch
Actuator Type
Rocker/button
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Design Range
Millenium
Surface Finishing
Decor, Matt
Material
Metal
Label Space Provided
Yes
Color
Stainless steel
Product Net Width
0.116 m
Product Net Height
0.091 m
Product Net Depth / Length
0.122 m
Product Net Weight
0.056 kg
Replaced Product ID (OLD)
2CL0DN620501
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC001590 - Installation switch
