2CLA621509N1101
Part Number: 2CLA621509N1101
Product Information
Extended Description

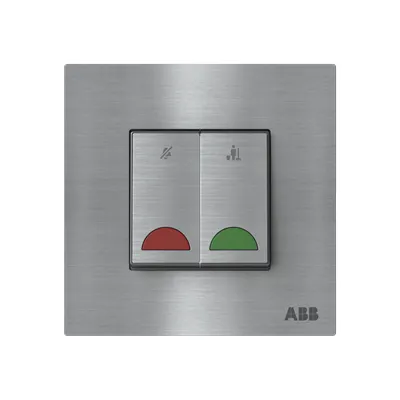

2CLA621509N1101 ABB: Rated voltage: 230Vac
Rated current: 10A
Red LED "Do Not Disturb"
Green LED "Make Up Room"
Double rocker
Instructions and Manuals
DND MUR Milenium.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Environmental Information
Doc 42-03-03 SWITCH
Data Sheet, Technical Information
9AKK106930A7740
Function
2g1w SP switch 10AX, Double with DND
Number of Gangs
2
Number of Rocker Switches
2
Wiring Configuration
Off switch 1-pole
Actuator Type
Rocker/button
Connection Type
Screw
Lamp Type
LED not exchangeable
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Design Range
Millenium
Surface Finishing
Decor, Matt
Material
Metal
Label Space Provided
Yes
Color
Stainless steel
Product Net Width
0.102 m
Product Net Height
0.062 m
Product Net Depth / Length
0.102 m
Product Net Weight
0.19 kg
Replaced Product ID (OLD)
2CL0N621501
RoHS Information
2CLA621509N1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
AM Series Switches CE DoC 9AKK108466A9931
ETIM 9
EC001590 - Installation switch
