2CLA623779N1701
Part Number: 2CLA623779N1701
Product Information
Extended Description
2CLA623779N1701 ABB: Rated voltage: 250Vac
Rated current: 15A
Double pole
Indicator LED
Child safety shutter system
Instructions and Manuals
9AKK106930A7740
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK106930A7740
Function

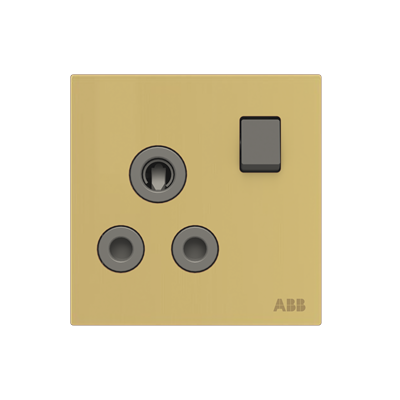

BS 1-gang socket outlet 15A round-pin, DP sw. w/LED
Number of Phases
2
Number of Gangs
1
Connection Type
Screw
Socket Outlet Type
Single
Illumination
Illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
15 A
Frequency (f)
50...60 Hz
Design Range
Millenium
Surface Finishing
Decor, Matt
Material
Metal
Legend
Without imprint
Label Space Provided
Yes
Color
Matt Gold
Product Net Width
0.102 m
Product Net Height
0.062 m
Product Net Depth / Length
0.102 m
Product Net Weight
0.198 kg
Replaced Product ID (OLD)
2CL0N623777
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
