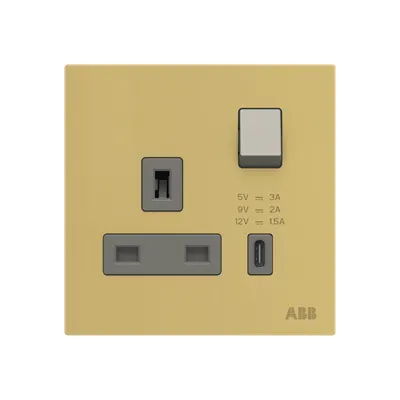

2CLA623799N1701
Part Number: 2CLA623799N1701
Product Information
Extended Description
2CLA623799N1701 ABB: Rated voltage: 250Vac
Rated current: 13A
Double pole switch
USB-C 18 W. with Advanced Charging
Includes child safety shutter
Includes frame and metal support with twin earth
Instructions and Manuals
BS socket outlet with USB-C
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
BS socket outlet with USB-C
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
13 A
Design Range
Millenium
Surface Finishing
Decor, Matt
Material
Metal
Label Space Provided
Yes
Color
Matt Gold
Product Net Width
0.102 m
Product Net Height
0.06 m
Product Net Depth / Length
0.165 m
Product Net Weight
0.105 kg
RoHS Information
2CLA623799N1701_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
