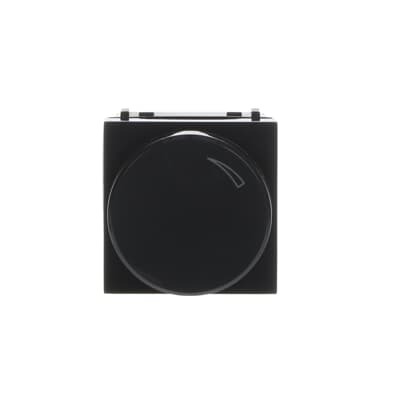

2CLA626030N1801

Part Number: 2CLA626030N1801
2CLA626030N1801
Manufacturer
ABB
Part number
2CLA626030N1801
Category

Product Information

Extended Description

2CLA626030N1801 ABB: Rated voltage: 230 Vac ± 10%. Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA). Power (min./max load): - LEDi: 2 / 100 W/VA (max. 10 lamps). - Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps). - LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps). - Incandescent lamps: 10 / 250 W/VA. - Halogen lamps: 10 / 250 W/VA. - LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps). 2 wire connection. Optional: auxiliary on/off with 2-way switch N2X02. Indicator LED lamp included. Back-up fuse: Electronic. Overload protection: Electronic. Ambient temperature: 0° C to +35° C. Combination with frames AMD5144-XX & 5244-XX
Instructions and Manuals
Installation and operating instructions - Rotatory LED dimmer N2260.3, N2260.8, 8660.2, AMD60344
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK106930A7740
Function
Dimmer, Universal/LED, 2M
Number of Gangs
1
Actuator Type
Turn button
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Frequency (f)
50...60 Hz
Load Type
Resistive load
Power Watt
250...250 V·A
Control Supply Voltage
1 ... 10 V
Design Range
Millenium
Surface Finishing
Untreated, Glossy
Material
Metal
Label Space Provided
Yes
Color
Anthracite Polished
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.08 kg
Built-In Depth (t2)
77 mm
Replaced Product ID (OLD)
2CL0DN626038
RoHS Information
2CLA626030N1801_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000025 - Dimmer
