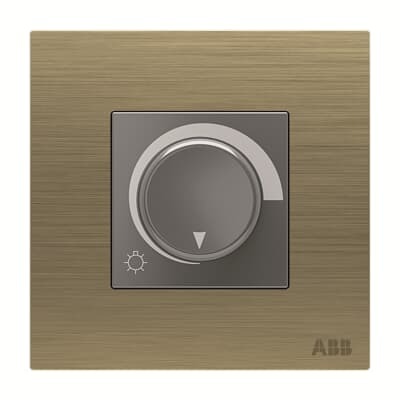

2CLA626039N1601
Part Number: 2CLA626039N1601
Product Information
Extended Description
2CLA626039N1601 ABB: Rated voltage: 250V~ +/-10 50 Hz.
Min. power: 40W / VA.
Max. power:
- Incandescent lamps: 400W.
- Halogen lamps with ferromagnetic transformers:
300 VA.
Operating temperature: 0° C to +30° C.
Includes frame and metal support
Instructions and Manuals
9AKK106930A7740
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK106930A7740
Function
Dimmer w/frame, Basic,
Number of Gangs
1
Actuator Type
Turn button
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Frequency (f)
50...50 Hz
Load Type
Resistive load
Power Watt
40...400 V·A
Design Range
Millenium
Surface Finishing
Decor, Matt
Material
Metal
Label Space Provided
Yes
Color
Antique Gold
Product Net Width
0.102 m
Product Net Height
0.062 m
Product Net Depth / Length
0.102 m
Product Net Weight
0.158 kg
Replaced Product ID (OLD)
2CL0N626036
RoHS Information
2CLA626039N1601_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
ESNIE CE DoC Millenium AM41344-XX 9AKK108466A9837
ETIM 9
EC000025 - Dimmer
