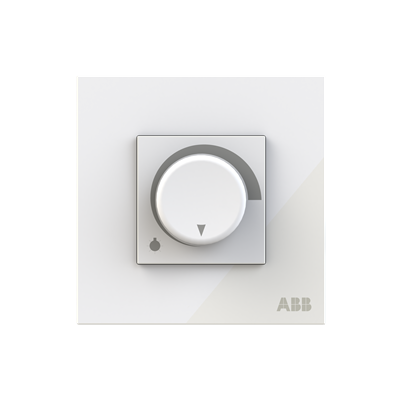

2CLA626039N3001
Part Number: 2CLA626039N3001
Product Information
Extended Description
2CLA626039N3001 ABB: Rated voltage: 250V~ +/-10 50 Hz.
Min. power: 40W / VA.
Max. power:
- Incandescent lamps: 400W.
- Halogen lamps with ferromagnetic transformers:
300 VA.
Operating temperature: 0° C to +30° C.
Includes frame and metal support
Instructions and Manuals
9AKK106930A7740
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Environmental Information
9AKK108466A4740
Data Sheet, Technical Information
9AKK106930A7740
Function
Dimmer w/frame, Basic,
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Millenium
Surface Finishing
Untreated, Glossy
Material
Glass
Label Space Provided
Yes
Color
White Glass
Product Net Width
0.102 m
Product Net Height
0.062 m
Product Net Depth / Length
0.102 m
Product Net Weight
0.158 kg
RoHS Information
2CLA626039N3001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
ef58558f-b29d-4bce-8848-846224c18775 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
ESNIE CE DoC Millenium AM41344-XX 9AKK108466A9837
ETIM 9
EC000025 - Dimmer
