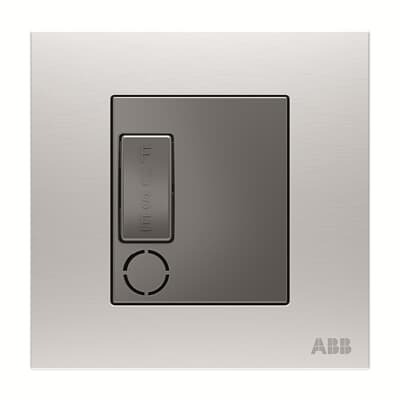

2CLA630809N1101
Part Number: 2CLA630809N1101
Product Information
Extended Description
2CLA630809N1101 ABB: Rated voltage: 230Vac
Rated current: 13A
Fuse size: Ø6.3x25mm
Fuse breaking capacity: 6kA 264V˜ 50Hz
Fuse according to BS1362
Instructions and Manuals
9AKK106930A7740
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK106930A7740
Function
Fuse connector unit 13A
Number of Poles
1P
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
13 A
Design Range
Millenium
Surface Finishing
Decor, Matt
Material
Metal
Label Space Provided
Yes
Color
Stainless steel
Width in Number of Modular Spacings
1,5
Product Net Width
0.102 m
Product Net Height
0.062 m
Product Net Depth / Length
0.102 m
Product Net Weight
0.179 kg
Built-In Depth (t2)
28 mm
Replaced Product ID (OLD)
2CL0N630801
RoHS Information
2CLA630809N1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
ESNIE CE DoC Millenium AM50653-XX 9AKK108466A9976
ETIM 9
EC002705 - Holder for cylindrical fuse
