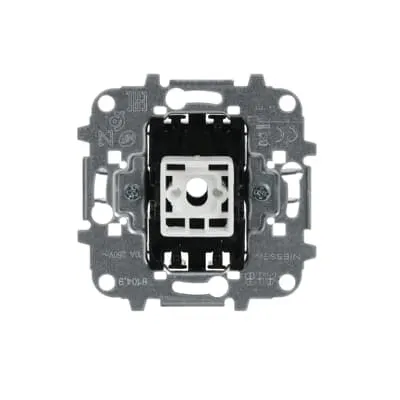

2CLA810490A1001
Part Number: 2CLA810490A1001
Product Information
Extended Description
2CLA810490A1001 ABB: Rated voltage: 110 - 250 Vac
Rated current: 10AX
NC: normally closed
Screwless terminals
Included: fixing claws
Optional: locator LED lamp 6192 BL (230 Vac)
Rocker code: 8901, 8901.3, 8904, 8904.2, 8904.3, 8904.4, 8501, 8501.3, 8504, 8504.2, 8504.3, 8504.4, 8601, 8601.3, 8401, 8401.3, 8404, 8404.2, 8404.3, 8404.4, 8201, 8201.3, 8201.9
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Mounting Type
Flush Mounted
Type of Fastening
Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Contacts Configuration
0 NO, 1 NC
Number of Poles
1P
Number of Rocker Switches
1
Actuator Type
Rocker
Connection Type
Screwless
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
1
Number of Contacts NC
1
Number of Contacts NO
0
Design Range
Platform 8100 | Alba | Sky Niessen
Surface Finishing
Untreated
Material
Plastic | Thermoplastic
Legend
Without imprint
Color
No color
Product Net Width
0.101 m
Product Net Height
0.102 m
Product Net Depth / Length
0.208 m
Product Net Weight
0.06 kg
Built-In Depth (t2)
25 mm
Replaced Product ID (OLD)
2CL0810490
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 59 %
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 92 %
Extended Product Lifetime
Product Durability | Product Modularity | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
EPD R60 SWITCH INSERTS ABBG-00348-V02.01-EN
RoHS Information
2CLA810490A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Sky Niessen Electromechanical Switches CE Declaration
ETIM 9
EC000029 - Push button
UNSPSC
39122200
