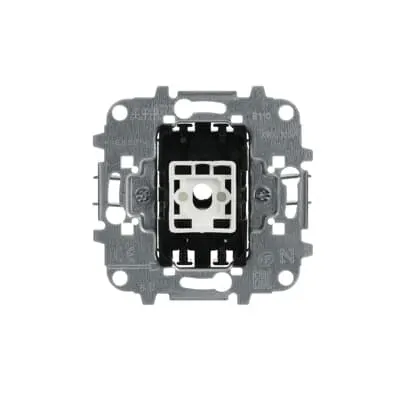

2CLA811000A1001
Part Number: 2CLA811000A1001
Product Information
Extended Description
2CLA811000A1001 ABB: Rated voltage: 110 - 250 Vac
Rated current: 10AX
Screwless terminals
Included: fixing claws
Optional: locator LED lamp 6192 BL (230 Vac)
Rocker code: 8901, 8901.2, 8901.3, 8901.4, 8501, 8501.2, 8501.3, 8501.4, 8601, 8601.3, 8401, 8401.2, 8401.3, 8401.4, 8201, 8201.2, 8201.3, 8201.4, 8201.9
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Mounting Type
Flush Mounted
Type of Fastening
Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Intermediate switch
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
LED exchangeable
Illumination
Optional
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10
Design Range
Platform 8100 | Alba | Sky Niessen
Label Space Provided
No
Color
No color
Product Net Width
0.149 m
Product Net Height
0.078 m
Product Net Depth / Length
0.225 m
Product Net Weight
0.061 kg
Replaced Product ID (OLD)
2CL0811000
RoHS Information
2CLA811000A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Sky Niessen Electromechanical Switches CE Declaration
ETIM 9
EC001590 - Installation switch
UNSPSC
39122200
