2CLA811450A1001

Part Number: 2CLA811450A1001
2CLA811450A1001
Manufacturer
ABB
Part number
2CLA811450A1001
Category

Product Information

Extended Description

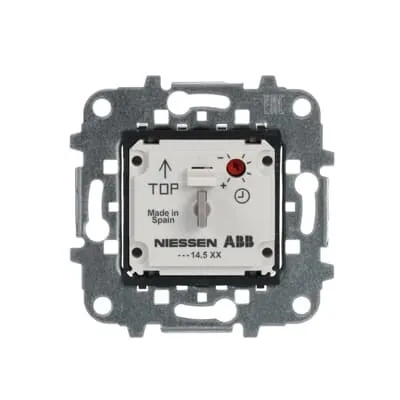

2CLA811450A1001 ABB: Rated voltage: 110 - 250 Vac; 50/60 Hz Rated current: - Incandescent/halogen: 3.000W@230Vac / 1.600W@127Vac - Fluorescent: 1.300VA@230Vac / 700VA@127Vac - Electronic and ferromag. transf. and motors: 3.000VA@230Vac / 1.600VA@127Vac 3 wire connection (neutral conductor required) For 54mm width cards Locator LED lamp included Time delayed switch: 5 - 90 seconds Cover plate code: 8914, 8514, 8414, 8214
Instructions and Manuals
Instruction manual - Card switch 8114.5 / N2214.5 / AM40544
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
16 A
Frequency (f)
50...60 Hz
Minimum Switching Capacity
3000...3000 W
Load Type
Universal
Design Range
Platform 8100 | Alba | Sky Niessen
Color
No color
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.078 kg
Replaced Product ID (OLD)
2CL0811450
RoHS Information
2CLA811450A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
9bbadd17-9646-4f0c-8f6c-4cfb68a6f13d Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Sky Niessen Electronic Switches CE Declaration
ETIM 9
EC001588 - Electronic switch
UNSPSC
39122200
