2CLA813020A1001

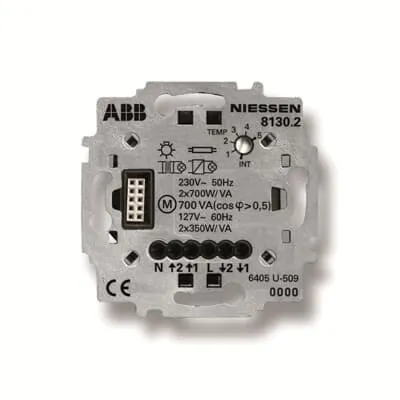

2CLA813020A1001 ABB: Rated voltage: 230 V~, +10 % / -10 % Rated frequency: 50 Hz For switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are actuated via transformers. 3 wire connection (neutral conductor required). With operating mode switch for operating mode: switch, time switch. Switch operating mode: press on the upper rocker switch half to switch the light on, press on the lower rocker switch half to switch the light off. Time switch operating mode: press on the upper rocker switch half to switch the light on, the light automatically switches off after a time delay. Manual switching off not possible. The delay can be set in 5 steps between 30 and 300 secs. Operation also possible via conventional push buttons 8104.X. Inputs: 1 Polling voltage: 230 V~, Sensing pulse, L-wire Outputs: 2 Normally open contacts, potential-bound Suitable for: ohmic, capacitive and inductive loads Rated current: 2x 3 AX Rated power: 2x 700 W/VA Included: attachable claws. Electronic cover plate code: 8530, 8430, 8230 & 5530
