2CLA813030A1001
Part Number: 2CLA813030A1001
Product Information
Extended Description

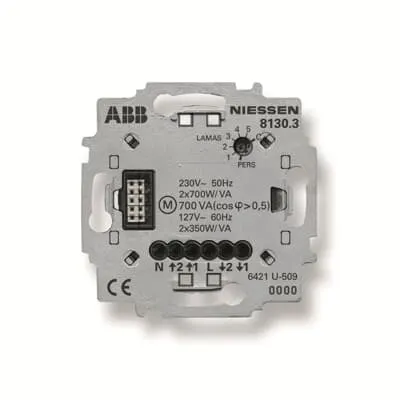

2CLA813030A1001 ABB: Rated voltage: 110 - 250 Vac; 50/60 Hz
Rated current: 700VA@230Vac / 350VA@127Vac
Direct control
Functions:
- PERS: standard blinds control. Optionally other 8144 inserts can be connected to the 8130.3 to control the blind from other locations
- LAM: venetian type blinds control. Optionally other 8144 inserts can be connected to the 8130.3 to control the blind from other locations
- Centralization (CEN): one 8130.3 can control all the 8130.3 of a line centrally
Included: fixing claws
Electronic rocker code: 8530, 8430, 8230 & 5530
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Channels
4
Transmission Standard
Radio Control
Number of Batteries
0
Design Range
Platform 8100 | Alba | Sky Niessen
Color
No color
Product Net Width
0.073 m
Product Net Height
0.052 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.102 kg
Replaced Product ID (OLD)
2CL0813030
RoHS Information
2CLA813030A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Sky Niessen Electronic Switches CE Declaration
ETIM 9
EC000257 - Transmitter/Remote control for domestic switching devices
UNSPSC
39122226
