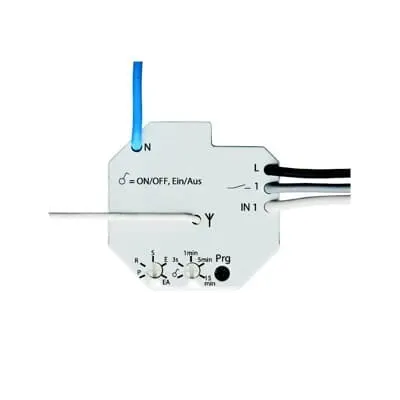

2CLA813040A1058
Part Number: 2CLA813040A1058
Product Information
Extended Description
2CLA813040A1058 ABB: 230 V~ ; 50 Hz.
2300 W / VA.
1000 VA.
Frequency: 868 MHz.
Two operating modes:
· Switch and time delay switch between 3 sec. - 15 min.
Provides an auxiliary phase connection terminal.
Dimensions: 47 mm. x 48 mm. x 22 mm.
Mounting Type
Other
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Relays
1
Number of Batteries
0
Current Type
230 V AC
Frequency (f)
868 MHz
Design Range
Platform 8100
Color
No color
Product Net Width
0.092 m
Product Net Height
0.058 m
Product Net Depth / Length
0.077 m
Product Net Weight
0.099 kg
Replaced Product ID (OLD)
2CL0813041BJE
RoHS Information
2CLA813040A1058_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000436 - Radio receiver
