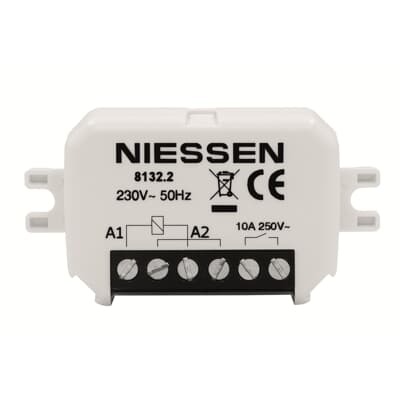

2CLA813220A1001
Part Number: 2CLA813220A1001
Product Information
Mounting Type
Flush-mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Rocker Switches
1
Wiring Configuration
Alternating-/alternating switch
Actuator Type
Rocker/button
Connection Type
Push-In
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Design Range
Zenit
Material
Plastic
Color
No color
Product Net Width
62 mm
Product Net Height
73 mm
Product Net Depth / Length
244.000 mm
Product Net Weight
24 g
RoHS Information
2CLA813220A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen movement detectors CE Declaration
ETIM 9
EC001590 - Installation switch
UNSPSC
39101628
