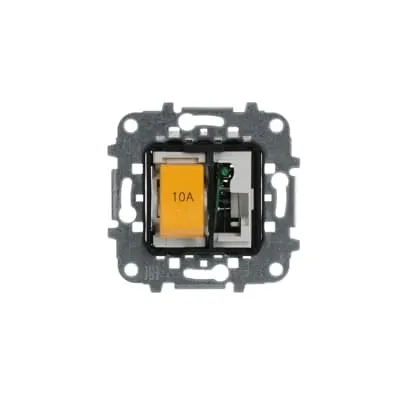

2CLA813410A1001
Part Number: 2CLA813410A1001
Product Information
Extended Description
2CLA813410A1001 ABB: Rated voltage: 120 - 230 Vac; 50/60 Hz
Rated current: 6A
Braking capacity: 1.500A
Residual current (sensitivity - I∆n): 10 mA
C type magneto-thermic protection
A type residual current protection
Two-pole (1P + N) with 1 protected pole
Without fixing claws
Cover plate code: 8534, 8434, 8234 & 5534
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
Front IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Poles
1P
Number of Switch Positions
2
Actuator Type
Rocker
Switch Type
On / Off
Number of Batteries
0
Rated Operational Voltage
Maximum 230 V
Design Range
Platform 8100 | Alba | Sky Niessen
Color
No color
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.12 kg
Replaced Product ID (OLD)
2CL0813410
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC002611 - Control switch
UNSPSC
39122200
