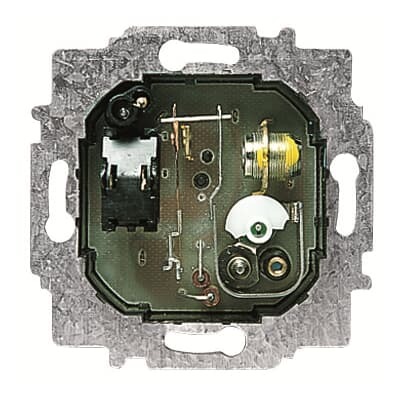

2CLA814010A1001
Part Number: 2CLA814010A1001
Product Information
Extended Description
2CLA814010A1001 ABB: 10 A ; 250 V~.
Adjustable from 5ÂşC to 30ÂşC.
Adjustable scope for action.
Operating temperature: -20ÂşC to 40ÂşC.
Gang ref. 8X40
Instructions and Manuals
Manual - Thermostats - 8140 / 8140.1 / 8140.2
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Temperature Class Default
II
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Measuring Range
-20 … 40 °C
Number of Outputs
Heater 1 | Cooler 0
Number of Gangs
1
Operating Mode
Turn
Connection Type
Two Wired
Contact Type
Normally Closed (NC)
Sensor Type
Resistance sensor
Number of Batteries
0
Power Consumption (@Pcons)
1 W
Design Range
Platform 8100 | Alba | Sky Niessen
Product Net Width
73 mm
Product Net Height
52 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.072 kg
Replaced Product ID (OLD)
2CL0814010
RoHS Information
2CLA814010A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC010927 - Room thermostat
UNSPSC
41112209
