2CLA814070A1001
Part Number: 2CLA814070A1001
Product Information
Extended Description

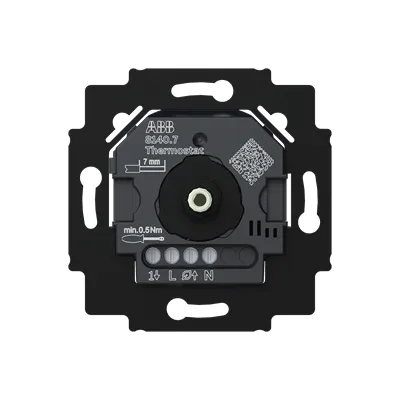

2CLA814070A1001 ABB: Electronic room thermostat;open contact;fm
Normally open contact;non-isolated
Switch contact opens when the set temperature is reached.
Without fixing claws.
Separate terminal to activate eco mode to reduce the room temperature by 3K
See respective cover plates 8540.7 XX and 8940.7 XX.
Class of temperature controller 1
Contribution to space heating energy efficiency 1,0%.
Rated voltage: 230 V~
Power dissipation: ≤ 0,15 W
Rated current: 10 A
Temperature range (device): 5 °C - 30 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 30 mm
Mounting depth: 25 mm
Protection class device: IP 20
Switching temperature difference: ± 0.5 K
Number of Batteries
0
Design Range
Platform 8100 | Alba | Sky Niessen
RoHS Information
2CLA853000A1501_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000636 - Electronic insert for domestic switching devices
UNSPSC
41112209
