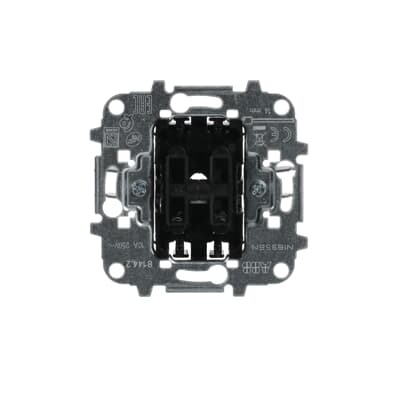

2CLA814420A1001
Part Number: 2CLA814420A1001
Product Information
Extended Description
2CLA814420A1001 ABB: Rated voltage: 110 - 250 Vac
Rated current: 10AX
Screwless terminals
Without interlock
Included: fixing claws
Rocker code: 8511, 8611, 8411, 8211 & 5511
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Mounting Type
Flush Mounted
Type of Fastening
Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P
Number of Rocker Switches
2
Actuator Type
Rocker
Connection Type
Screwless
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
1
Number of Contacts NC
0
Number of Contacts NO
1
Design Range
Platform 8100 | Alba | Sky Niessen
Surface Finishing
Untreated
Material
Plastic | Thermoplastic
Legend
Without imprint
Color
No color
Product Net Width
0.149 m
Product Net Height
0.078 m
Product Net Depth / Length
0.225 m
Product Net Weight
0.064 kg
Built-In Depth (t2)
25 mm
Replaced Product ID (OLD)
2CL0814420
RoHS Information
2CLA814420A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
093783a1-3d21-4f6e-8c09-a7274d88f63d Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Skymoon Electromechanical Switches CE Declaration
ETIM 9
EC000029 - Push button
UNSPSC
39122226
