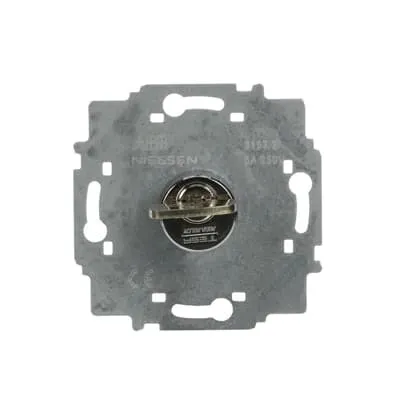

2CLA815320A1001
Part Number: 2CLA815320A1001
Product Information
Extended Description
2CLA815320A1001 ABB: Rated voltage: 110 - 250 Vac
Rated current: 5A
Key removable in "OFF" position
Unique key for each lock
Suitable for alarms
Cover plate code: 8553 & 8253
Instructions and Manuals
Key switches
Mounting Type
Flush Mounted
Type of Fastening
Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P
Actuator Type
Key
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
5 A
Number of Contacts CO
1
Number of Contacts NC
0
Number of Contacts NO
1
Design Range
Platform 8100 | Alba | Sky Niessen
Surface Finishing
Untreated
Material
Plastic | Thermoplastic
Legend
Without imprint
Color
No color
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.14 kg
Built-In Depth (t2)
29 mm
Replaced Product ID (OLD)
2CL0815320
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000029 - Push button
UNSPSC
39122200
