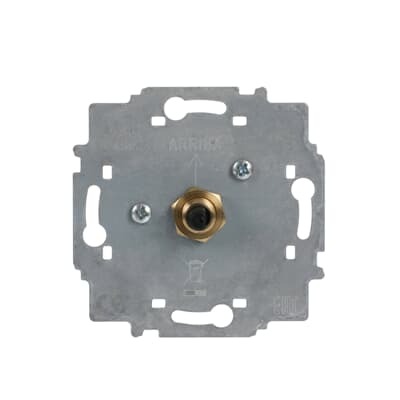

2CLA815400A1001
Part Number: 2CLA815400A1001
Product Information
Extended Description
2CLA815400A1001 ABB: Rated voltage: 110 - 250 Vac
Rated current: 16AX
4 postions
4 circuits
Faston terminals
Without fixing claws
Cover plate code: 8554, 8454, 8254 & 5554
Mounting Type
Flush Mounted
Type of Fastening
Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Wiring Configuration
Alternating-/alternating switch
Actuator Type
Turn button
Connection Type
Plug Clamp
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Maximum Switching Current
Fluorescent Lamps 16
Design Range
Platform 8100 | Alba | Sky Niessen
Label Space Provided
No
Color
No color
Product Net Width
0.153 m
Product Net Height
0.08 m
Product Net Depth / Length
0.292 m
Product Net Weight
0.072 kg
Replaced Product ID (OLD)
2CL0815400
RoHS Information
2CLA815400A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
3a93ba8c-f956-4686-b2d5-d9deee2d8787 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
ABB Niessen CE DoC 4 position rotatory switch
ETIM 9
EC001590 - Installation switch
UNSPSC
39122200
