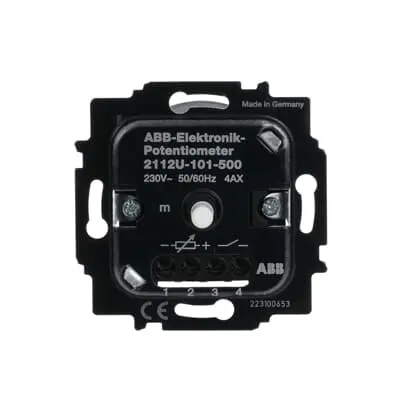

2CLA816090A1001
Part Number: 2CLA816090A1001
Product Information
Extended Description
2CLA816090A1001 ABB: Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
Rated power: 700 W/VA
With rotary control.
For controlling ballast units for fluorescent lamps with control output 1-10 V DC, control current max. 50 mA DC.
For LED control via control drivers
Without cover plate.
Not illuminable.
Making-current limiters have to be provided in case of too high making currents.
Included: fixing claws
Cover plate code: 8560.2, 8460.2, 8260.2 & 5560
Mounting Type
Flush Mounted
Type of Fastening
Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Actuator Type
Turn button
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
230...230 V
Frequency (f)
50...50 Hz
Load Type
Electronic ballast 1-10 V
Power Watt
700...700 V·A
Control Supply Voltage
1 ...10 V
Design Range
Platform 8100 | Alba | Sky Niessen
Color
No color
Product Net Width
0.062 m
Product Net Height
0.073 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.08 kg
Built-In Depth (t2)
74 mm
Replaced Product ID (OLD)
2CL0816090
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Skymoon Electronic Switches CE Declaration
ETIM 9
EC000025 - Dimmer
UNSPSC
39122206
