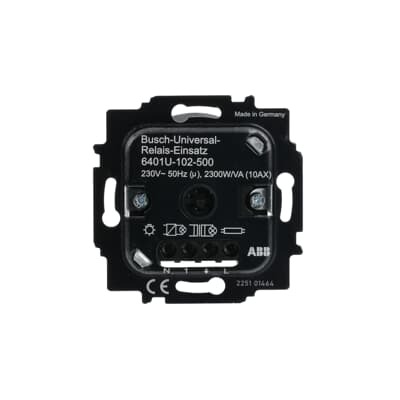

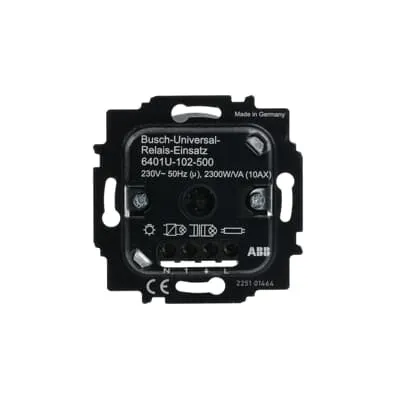

2CLA816100A1001
Part Number: 2CLA816100A1001
Product Information
Extended Description
2CLA816100A1001 ABB: Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
3 wire connection (neutral conductor required).
For timer control element 8165.31 or 8165.3
Operation also possible via conventional push buttons 8104.X.
Outputs: 1 Normally open contact, potential-bound
Suitable for: 230 V incandescent lamps, 230 V halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are operated via transformers.
Rated current: 10 AX
Rated power: 2300 W/VA
Temperature range (Device): -25 °C to 55 °C
Included: fixing claws
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Frequency (f)
50...50 Hz
Minimum Switching Capacity
2300...2300 W
Load Type
Universal
Design Range
Platform 8100 | Alba | Sky Niessen
Color
No color
Product Net Width
0.062 m
Product Net Height
0.073 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.14 kg
Replaced Product ID (OLD)
2CL0816100
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC001588 - Electronic switch
UNSPSC
39122200
