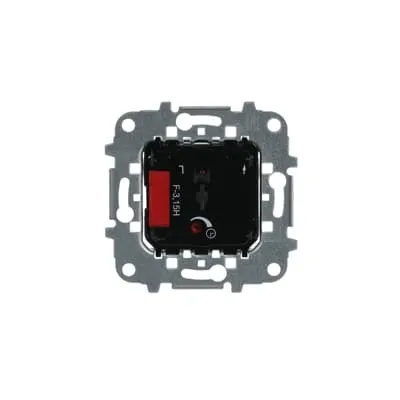

2CLA816210A1001
Part Number: 2CLA816210A1001
Product Information
Extended Description
2CLA816210A1001 ABB: Rated voltage: 230 Vac / 50 Hz
Power:
- Incandescent: 40 - 500 W
- Halogen with transformer: 40 - 400 VA
- Motors: 40 - 100 VA
2 wire connection
Delay setup: 10 sec. to 10 min.
Overcurrent protection: with fuse
Indicator LED lamp included
Without fixing claws
Operating temperature: 0 - 40ÂşC
Cover plate code: 8562, 8462, 8262 & 5562
Instructions and Manuals
Manual - Timer switch - N2262.1 / 8162.1 / 2262.1
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Minimum Switching Time
0.17 minute [unit of time]
Time Range
0.16 ... 10_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
3 A
Frequency (f)
50 ... 50 Hz
Power Watt
500 W
Number of Contacts NO
1
Design Range
Platform 8100 | Alba | Sky Niessen
Material
Plastic | Thermoplastic
Color
No color
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.1 kg
Built-In Depth (t2)
33.5 mm
Replaced Product ID (OLD)
2CL0816210
RoHS Information
2CLA816210A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Sky Niessen Electronic Switches CE Declaration
ETIM 9
EC001594 - Time switch clock for domestic switching devices
UNSPSC
39122200
