2CLA818020A1001
Part Number: 2CLA818020A1001
Product Information
Extended Description

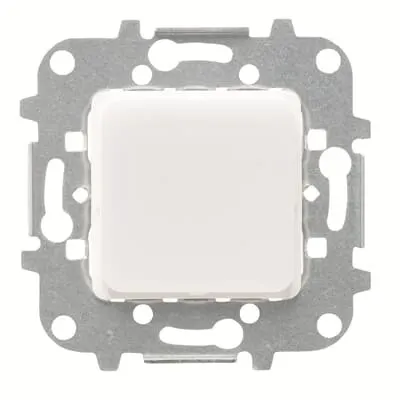

2CLA818020A1001 ABB: Rated voltage: 127-230 Vac / 50-60 Hz
Lamp: red/green LED
Luminous flux: > 2 lumen at 1 meter
Without fixing claws
Cover plate code: 8581 without pictogram or 8581.XX with pictogram, 8481 (optional 8481.1 pictograms), 8281 (optional 8281.1 pictograms) & 5581 (optional 5581.1 pictograms)
Instructions and Manuals
Installation and operation manual - Signaling light / DND/MUR light - 8180.1 / N2280 / 8180.2 / N2280.2
Mounting Type
Flush Mounted
Type of Fastening
Screw
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Lamp Type
LED not exchangeable
Lamp Color
Red / Green
Number of Batteries
0
Rated Voltage (Ur)
230 V
Design Range
Platform 8100 | Alba | Sky Niessen
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Plastic
Color
No color
Product Net Width
0.073 m
Product Net Height
0.052 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.072 kg
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CL0818020
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen LED Light Emergency Light Info Light Light Signal Inserts -Platform Sky
ETIM 9
EC000064 - Information light signal for domestic switching devices
UNSPSC
39122200
