2CLA828200A1101
Part Number: 2CLA828200A1101
Product Information
Extended Description
2CLA828200A1101 ABB: 15-28 V~ / 18-35 V~.
110 mA~ / 60 mA~.

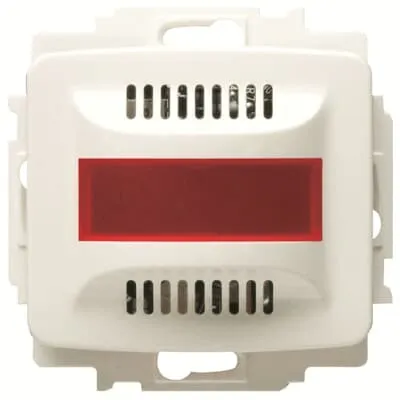

Receives the signals of the push buttons and activates the alarms.
The unit itself is a visual and accustic alarm.
Operating delay time: 0,1 seg.
Optional output contact 42 V~ / 60 V~ ; 30 VA / 30 W, potential free.
Tone frequency: 2300 Hz.
Accustic level: 78 dB / 30 cm
Instructions and Manuals
Manual - Nurse call - 8282 / 8283 / 8284
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Type of Indicator
Other
Number of Batteries
0
Design Range
Arco
Material
Duroplast;Plastic
Color
White
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.068 kg
Replaced Product ID (OLD)
2CL0828201
RoHS Information
2CLA828200A1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen SAS 8282
ETIM 9
EC002969 - Indication element clinic-installation
UNSPSC
39121801
