2CLA828320A1101
Part Number: 2CLA828320A1101
Product Information
Extended Description

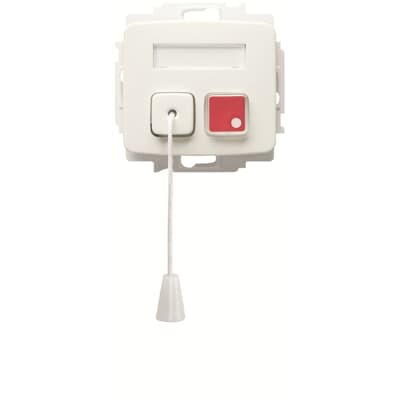

2CLA828320A1101 ABB: 9,5-28 V~ / 9,5-35 V~
20 mA~ / 10 mA~
This product, apart from having a signaling button, that operates as a push button, includes an adjustable 2,5 m cord that also operate as a push button, but allows for operating the alarm in an easier way.
The signalling button has a LED that switches on when the signal activates.
Has three label holders and three colour stickers for the button.
Maximum contact load 30 V~ / 35 V~ ; 100 mA, potential free.
Instructions and Manuals
Manual - Nurse call - 8282 / 8283 / 8284
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Function
Button function: Activate call
Suitable For
Call
Operating Mode
Pull
Number of Batteries
0
Design Range
Arco
Material
Duroplast, Plastic
Color
White
Product Net Width
0.076 m
Product Net Height
0.064 m
Product Net Depth / Length
0.076 m
Product Net Weight
0.068 kg
Replaced Product ID (OLD)
2CL0828321
RoHS Information
2CLA828320A1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen SAS 8283.2
ETIM 9
EC002972 - Call-/control unit clinic-installation
UNSPSC
39122244
