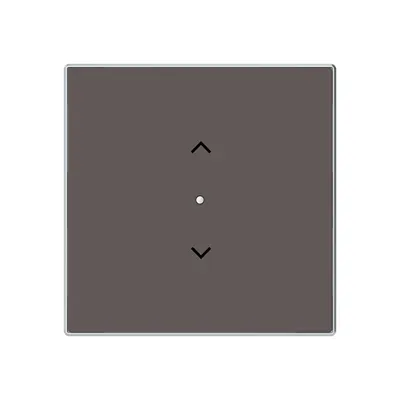

ABB 2CLA852623A6301 Cover Plate for Venetian Blind - IP20
Part Number: 2CLA852623A6301
Quick Summary
ABB 2CLA852623A6301 cover plate is a 1-gang cover for Free@Home and KNX sensors, supporting Venetian blind control. Engineers often struggle to harmonize aesthetics, wiring, and protection in compact control panels. This solution supports RoHS compliance, WEEE classification, and SCIP registration, empowering you to meet EU regulatory and sustainability targets. In addition, it integrates Sky Niessen visuals and the Venetian blind symbol for a cohesive look, accelerating commissioning and reducing onsite adjustments. The parallel benefit is a professional, durable finish that simplifies future maintenance and upgrades while keeping installations compliant with industry norms.
Product Information
Extended Description
2CLA852623A6301 ABB: Color: Taupe .
Cover plate for free@home sensors and sensor/actuators with 1-gang sensors code: SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1, SU-F-1.0.1-WL, SSA-F-1.1.1-WL, SDA-F-1.1.1-WL, SBA-F-1.1.1-WL.
Cover plate for KNX 1-gang sensors code: 6108/06-500.
With Blind symbol.
Instructions and Manuals
Manual - Wiring diagrams switches and push-buttons - 81XX
Type of Fastening
Clamp
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Environmental Information
Doc 42-03-04 Comunication Sky New Colours A
Data Sheet, Technical Information
Sky Niessen_catalogue 2018 [EN]
Application
Venetian blind
Number of Batteries
0
Design Range
Sky Niessen
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Symbol "arrows"
Color
Taupe
Product Net Width
0.073 m
Product Net Height
0.033 m
Product Net Depth / Length
0.073 m
RoHS Information
2CLA852623A6301_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
eb89edfe-5fb9-41c9-b4d3-eba3d4f9413b Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Marketing Video
Zenit short video | Sky Niessen new finishings short | Sky Niessen video | Sky Niessen reforma short
ETIM 9
EC000011 - Control element/cover plate for domestic switching devices
UNSPSC
39121704
Feature: Clamp fastening provides quick, tool-free mounting and secure retention. Business Impact: Reduces installation time by up to several minutes per unit, lowering labor costs and minimizing field errors. Application: Ideal for new builds and retrofit projects in industrial automation cabinets where speed matters. Feature: Taupe decorative finish in Sky Niessen decor matt, with a plastic thermoplastic body. Business Impact: Enhances aesthetic integration with wall surfaces and control panels, reducing post-install repaint costs and call-backs. Application: 1-gang sensor plates adjacent to Venetian blinds in living spaces and commercial spaces using KNX or Free@Home. Feature: 1-gang sensor compatibility (SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1, including WL variants). Business Impact: Expands compatibility across multiple sensor families, reducing inventory and speeding up procurement. Application: KNX and Free@Home ecosystems. Feature: IP20 protection, operating -5 to +35 °C. Business Impact: Ensures safe operation in typical indoor environments and protects against dust intrusion in wall-mounted installations. Application: Control panels in offices, showrooms, or utilities rooms. Feature: RoHS and WEEE compliance with SCIP registration. Business Impact: Supports regulatory compliance, sustainability reporting, and future-proofing against evolving EU directives. Application: Corporate installations with strict procurement standards. Feature: Sky Niessen design and symbol arrows for Venetian blind control. Business Impact: Improves user recognition and reduces training time for building occupants. Application: Residential and commercial integration with KNX/Free@Home systems.
Get a Quick Quote for a ABB 2CLA852623A6301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CLA852623A6301?
Enquire Now
FAQs
Install by clipping the cover plate onto a 1-gang wall box using the clamp fastening. Connect to compatible KNX/Free@Home sensor modules (codes SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1 and WL variants) as instructed in the Sky Niessen/ABB installation guide. The Taupe finish and 0.073 m width ensure a clean, flush appearance in standard 35 mm mounting shells, with IP20 protection for indoor use.
Yes. The cover plate is designed for Venetian blind applications and includes the Sky Niessen symbol set to indicate the blanking plate mid-assembly. It supports 1-gang sensor modules in KNX and Free@Home ecosystems, enabling seamless integration with motorized blinds while preserving aesthetic consistency.
The product is RoHS compliant as indicated by the RoHS declaration and is classified under WEEE with category 5 for small equipment. It also has SCIP registration, aligning with EU sustainability and conflict minerals reporting requirements. These certifications help with regulatory approvals and responsible procurement.
The cover plate has a net width of 0.073 m and a net height of 0.033 m, with a depth of 0.073 m. It operates in ambient temperatures from -5 to +35 °C and storage conditions down to -5 to +50 °C, with IP20 weather protection suitable for indoor installations.
By using a clamp-fastened 1-gang cover compatible with multiple sensor families, commissioning time is reduced and inventory is simplified. The durable thermoplastic Taupe finish aligns with Sky Niessen aesthetics, reducing retrofit costs. RoHS/WEEE/SCIP compliance minimizes regulatory risk and supports sustainability reporting, delivering lower total cost of ownership over the product lifecycle.
